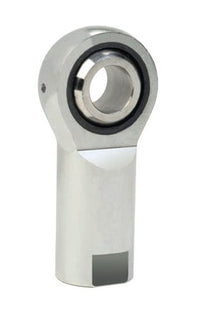

Stainless Steel Self-Lubricating Rod End - Female

Stainless Steel Self-Lubricating Rod End - Female

PUS-f6c73c

High-performance stainless steel rod end with self-lubricating nylon race for versatile applications.

$39.99
$39.99
Sale

Initiate Order

Stainless Steel Self-Lubricating Rod End - Female

Stainless Steel Self-Lubricating Rod End - Female

$39.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Self-Lubricating Rod End - Female

Stainless Steel Self-Lubricating Rod End - Female

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The LH SSPM/SSPF Stainless Steel Rod End features a molded self-lubricating nylon race for low friction and moisture resistance. With a high ultimate radial static load capacity of 5350 lb, this rod end offers excellent wear resistance and corrosion protection. Suitable for marine, construction, and recreational vehicle applications, it operates smoothly in temperatures ranging from -30 ºF to 220 ºF. Customizable assemblies meeting SAE spec J1120 are available, providing exceptional versatility and performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:MarineConstruction equipmentRecreational vehicles (ATV's, golf carts, etc.)Truck/off highway
Features 0
Stainless steel construction for extra corrosion protectionNylon molded race delivers self-lubricating low friction and moisture-resistant performanceGood wear resistanceDesign allows for control of breakaway torque, adding to its application versatilityCan be used in a wide range of temperatures: -30 ºF - 220 ºF (-34 ºC - 104 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Stainless SteelBody - Stainless SteelRace - Molded Self-Lubricating Reinforced NylonStud (optional) - Stainless Steel
Specifications Additional Options
Studded Configuration
Specifications Ball Bore B 00020 00000
0.4375 "
Specifications Ball Diameter Ref
0.812 "
Specifications Ball Width W 0005
0.562 "
Specifications Centerline Length A 0015
1.812 "
Specifications Head Diameter D 0015
1.125 "
Specifications Housing Width H Ref
0.437 "
Specifications Note
This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: SSPF8S
Specifications Shank Diameter K 0015
0.750 "
Specifications Temperature Range
-30 to 220 ºF | -34 to 104 ºC
Specifications Thread Length C 0060
1.031 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
5350 lb
Specifications Unf 2
7/16-20 "
Specifications Weight
0.192 lb
Specifications Wrench Flat Length F 0030
0.625 "
Specifications Wrench Flat Width J 0015
0.625 "
Studded Dimensions L Ref
0.844 "
Studded Dimensions Min Thread Length S
0.937 "
Studded Dimensions P 0030
1.062 "
Studded Dimensions Rod End Bore Size
7/16 "
Studded Dimensions Thread Size N Unf 2a
7/16-20 "
CAGE
0T9L4
NAICS
332510
PSC
4030
