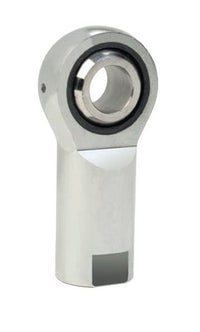

Stainless Steel Self-Lubricating Rod End SSPM/SSPF

Name: Stainless Steel Self-Lubricating Rod End SSPM/SSPF
Brand: Lexco Cable Manufacturing
SKU: PUS-e08a53
Price: 35.99 USD
Availability: OutOfStock

SKU:PUS-e08a53

High-quality stainless steel rod end with self-lubricating nylon race for precision motion control in marine, construction, and recreational applications.

$35.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Self-Lubricating Rod End SSPM/SSPF is a premium solution designed for precision motion transfer in various applications. Constructed with stainless steel and a molded self-lubricating reinforced nylon race, it ensures durability, corrosion resistance, and low friction operation. With features like a wide temperature range, custom assembly options, and SAE J1120 compliance, this rod end offers versatility and performance reliability. Ideal for marine, construction, and recreational vehicle use, this product delivers exceptional quality and functionality.

Product Specifications

Applications 0

Numerous mechanical motion transfer devices/applications, including:MarineConstruction equipmentRecreational vehicles (ATV's, golf carts, etc.)Truck/off highway

Features 0

Stainless steel construction for extra corrosion protectionNylon molded race delivers self-lubricating low friction and moisture-resistant performanceGood wear resistanceDesign allows for control of breakaway torque, adding to its application versatilityCan be used in a wide range of temperatures: -30 ÂºF - 220 ÂºF (-34 ÂºC - 104 ÂºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120

Material 0

Ball - Stainless SteelBody - Stainless SteelRace - Molded Self-Lubricating Reinforced NylonStud (optional) - Stainless Steel

Specifications Additional Options

Studded Configuration

Specifications Ball Bore B 00020 00000

0.7500 "

Specifications Ball Diameter Ref

1.312 "

Specifications Ball Width W 0005

0.875 "

Specifications Centerline Length A 0015

2.875 "

Specifications Head Diameter D 0015

1.750 "

Specifications Housing Width H Ref

0.687 "

Specifications Note

This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: SSPF8S

Specifications Shank Diameter K 0015

1.125 "

Specifications Temperature Range

-30 to 220 ÂºF | -34 to 104 ÂºC

Specifications Thread Length C 0060

1.562 "

Specifications Type

Female

Specifications Ultimate Radial Static Load Capacity

10900 lb

Specifications Unf 2

3/4-16 "

Specifications Weight

0.672 lb

Specifications Wrench Flat Length F 0030

1.000 "

Specifications Wrench Flat Width J 0015

1.000 "

Studded Dimensions L Ref

1.187 "

Studded Dimensions Min Thread Length S

1.625 "

Studded Dimensions P 0030

1.812 "

Studded Dimensions Rod End Bore Size

3/4 "

Studded Dimensions Thread Size N Unf 2a

3/4-16 "
