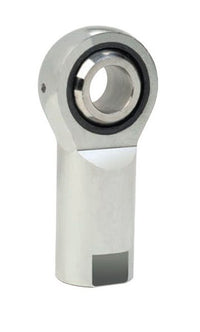

Stainless Steel Self-Lubricating Rod End - SSPM/SSPF Series

Name: Stainless Steel Self-Lubricating Rod End - SSPM/SSPF Series
Brand: Lexco Cable Manufacturing
SKU: PUS-8432b9
Price: 39.99 USD
Availability: OutOfStock

SKU:PUS-8432b9

Durable stainless steel rod ends with self-lubricating nylon race for versatile mechanical motion applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SSPM/SSPF Rod Ends are precision-engineered with stainless steel construction for superior corrosion protection. Featuring a molded self-lubricating reinforced nylon race, these rod ends provide low friction, moisture-resistance, and excellent wear resistance. With a wide temperature range of -30 Ã‚ÂºF to 220 Ã‚ÂºF (-34 Ã‚ÂºC to 104 Ã‚ÂºC), these rod ends are versatile for numerous applications, such as marine, construction equipment, and recreational vehicles. Custom assemblies are available, meeting SAE spec J1120.

Product Specifications

Applications 0

Numerous mechanical motion transfer devices/applications, including:MarineConstruction equipmentRecreational vehicles (ATV's, golf carts, etc.)Truck/off highway

Features 0

Stainless steel construction for extra corrosion protectionNylon molded race delivers self-lubricating low friction and moisture-resistant performanceGood wear resistanceDesign allows for control of breakaway torque, adding to its application versatilityCan be used in a wide range of temperatures: -30 ÂºF - 220 ÂºF (-34 ÂºC - 104 ÂºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120

Material 0

Ball - Stainless SteelBody - Stainless SteelRace - Molded Self-Lubricating Reinforced NylonStud (optional) - Stainless Steel

Specifications Additional Options

Studded Configuration

Specifications Ball Bore B 00020 00000

0.4375 "

Specifications Ball Diameter Ref

0.812 "

Specifications Ball Width W 0005

0.562 "

Specifications Centerline Length A 0015

1.812 "

Specifications Head Diameter D 0015

1.125 "

Specifications Housing Width H Ref

0.437 "

Specifications Note

This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: SSPF8S

Specifications Shank Diameter K 0015

0.750 "

Specifications Temperature Range

-30 to 220 ÂºF | -34 to 104 ÂºC

Specifications Thread Length C 0060

1.031 "

Specifications Type

Female

Specifications Ultimate Radial Static Load Capacity

5350 lb

Specifications Unf 2

7/16-20 "

Specifications Weight

0.192 lb

Specifications Wrench Flat Length F 0030

0.625 "

Specifications Wrench Flat Width J 0015

0.625 "

Studded Dimensions L Ref

0.844 "

Studded Dimensions Min Thread Length S

0.937 "

Studded Dimensions P 0030

1.062 "

Studded Dimensions Rod End Bore Size

7/16 "

Studded Dimensions Thread Size N Unf 2a

7/16-20 "

CAGE

0T9L4

NAICS

332510

PSC

4030
