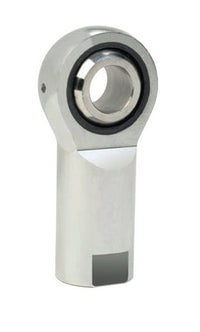

Stainless Steel Self-Lubricating Rod End, SSPM/SSPF Series

Stainless Steel Self-Lubricating Rod End, SSPM/SSPF Series

SKU:PUS-3777da

Stainless Steel Self-Lubricating Rod Ends for precise control in diverse applications. Corrosion-resistant with low friction and high durability.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Stainless Steel Self-Lubricating Rod End, SSPM/SSPF Series

Stainless Steel Self-Lubricating Rod End, SSPM/SSPF Series

$49.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Self-Lubricating Rod End, SSPM/SSPF Series

Stainless Steel Self-Lubricating Rod End, SSPM/SSPF Series

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel SSPM/SSPF Rod Ends are engineered for durability and precision. With a stainless steel construction providing corrosion protection, a molded self-lubricating nylon race for low friction, and moisture resistance, these rod ends offer exceptional wear resistance and reliable performance in various mechanical motion transfer applications. Designed to meet SAE spec J1120, these rod ends deliver versatility with a wide temperature range of -30 ºF to 220 ºF. Available in studded configurations, left or right-handed versions, and customizable assemblies, they cater to diverse needs across marine, construction, and recreational vehicle industries.

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:MarineConstruction equipmentRecreational vehicles (ATV's, golf carts, etc.)Truck/off highway
Features 0
Stainless steel construction for extra corrosion protectionNylon molded race delivers self-lubricating low friction and moisture-resistant performanceGood wear resistanceDesign allows for control of breakaway torque, adding to its application versatilityCan be used in a wide range of temperatures: -30 ºF - 220 ºF (-34 ºC - 104 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Stainless SteelBody - Stainless SteelRace - Molded Self-Lubricating Reinforced NylonStud (optional) - Stainless Steel
Specifications Additional Options
Studded Configuration
Specifications Ball Bore B 00020 00000
0.3750 "
Specifications Ball Diameter Ref
0.719 "
Specifications Ball Width W 0005
0.500 "
Specifications Centerline Length A 0015
1.625 "
Specifications Head Diameter D 0015
1.000 "
Specifications Housing Width H Ref
0.406 "
Specifications Note
This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: SSPF8S
Specifications Shank Diameter K 0015
0.687 "
Specifications Temperature Range
-30 to 220 ºF | -34 to 104 ºC
Specifications Thread Length C 0060
0.937 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
4100 lb
Specifications Unf 2
3/8-24 "
Specifications Weight
0.146 lb
Specifications Wrench Flat Length F 0030
0.312 "
Specifications Wrench Flat Width J 0015
0.562 "
Studded Dimensions L Ref
0.625 "
Studded Dimensions Min Thread Length S
0.781 "
Studded Dimensions P 0030
0.875 "
Studded Dimensions Rod End Bore Size
3/8 "
Studded Dimensions Thread Size N Unf 2a
3/8-24 "
CAGE
0T9L4
NAICS
332510
PSC
4030
