Durable Stainless Steel Self-Lubricating Rod Ends for precision motion control in various applications. SAE J1120 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

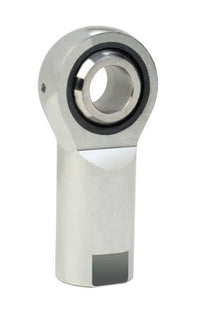

The Stainless Steel Self-Lubricating Rod Ends from the SSPM/SSPF Series offer unparalleled durability and performance. Crafted with stainless steel and a molded self-lubricating nylon race, these rod ends ensure exceptional corrosion resistance, low friction, and moisture resistance. With precise specifications meeting institutional demands and SAE spec J1120 compliance, these rod ends excel in marine, construction, and recreational vehicle applications. From controlling breakaway torque to custom assembly options, these rod ends are designed for versatility and longevity in diverse mechanical motion transfer systems.

Product Specifications

Applications 0

Numerous mechanical motion transfer devices/applications, including:MarineConstruction equipmentRecreational vehicles (ATV's, golf carts, etc.)Truck/off highway

Features 0

Stainless steel construction for extra corrosion protectionNylon molded race delivers self-lubricating low friction and moisture-resistant performanceGood wear resistanceDesign allows for control of breakaway torque, adding to its application versatilityCan be used in a wide range of temperatures: -30 ÂºF - 220 ÂºF (-34 ÂºC - 104 ÂºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120

Material 0

Ball - Stainless SteelBody - Stainless SteelRace - Molded Self-Lubricating Reinforced NylonStud (optional) - Stainless Steel

Specifications Additional Options

Studded Configuration

Specifications Ball Bore B 00020 00000

0.1900 "

Specifications Ball Diameter Ref

0.438 "

Specifications Ball Width W 0005

0.312 "

Specifications Centerline Length A 0015

1.062 "

Specifications Head Diameter D 0015

0.625 "

Specifications Housing Width H Ref

0.250 "

Specifications Note

This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: SSPF8S

Specifications Shank Diameter K 0015

0.406 "

Specifications Temperature Range

-30 to 220 ÂºF | -34 to 104 ÂºC

Specifications Thread Length C 0060

0.562 "

Specifications Type

Female

Specifications Ultimate Radial Static Load Capacity

1210 lb

Specifications Unf 2

10-32 "

Specifications Weight

0.036 lb

Specifications Wrench Flat Length F 0030

0.406 "

Specifications Wrench Flat Width J 0015

0.312 "

Studded Dimensions L Ref

0.437 "

Studded Dimensions Min Thread Length S

0.375 "

Studded Dimensions P 0030

0.438 "

Studded Dimensions Rod End Bore Size

3/16 "

Studded Dimensions Thread Size N Unf 2a

10-32 "
