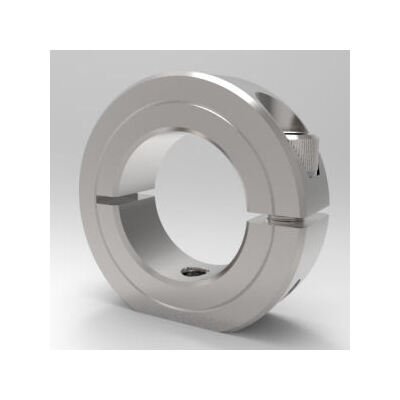

Stainless Steel Shaft Mounting Collar, Clamp-Type - One-Piece Split

Name: Stainless Steel Shaft Mounting Collar, Clamp-Type - One-Piece Split
Brand: Stafford Manufacturing Corp.
SKU: FLA-729bf7
Price: 12.99 USD
Availability: OutOfStock

SKU:FLA-729bf7

Securely mount shafts with precision using this Stainless Steel Clamp-Type Shaft Collar - One-Piece Split. High clamping power and easy adjustment for versatile applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Shaft Mounting Collar is a reliable solution for securely mounting shafts to surfaces or components. Designed with a smooth bore to protect shafts from damage, it features a flat and countersunk hole for easy mounting. Precision machined from 303 alloy stainless steel, this one-piece split collar offers high clamping power without marring the shaft. With its low-profile design and easy adjustment capabilities, this collar is suitable for various applications, including standard round shafts, thin-wall tubes, or split hubs.

Product Specifications

Dimensional Attributes Bore Size

1-3/8 in

Dimensional Attributes Bottom Threaded Hole

1/4-20

Dimensional Attributes Distance Across Flats

2.156 in

Dimensional Attributes Mounting Screw

#10 Flat Head Cap Screw

Dimensional Attributes Outside Diameter

2.250 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Width

0.563 in

Specifications Alloy

303

Specifications Approximate Weight

0.37 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

19S106MT

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786026638

Stainless Steel Shaft Mounting Collar, Clamp-Type - One-Piece Split
