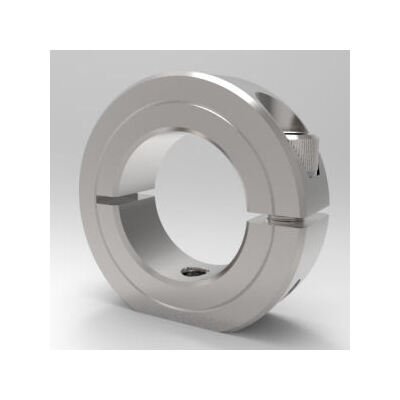

Stainless Steel Shaft Mounting Collar - Clamp-Type Split Design

Name: Stainless Steel Shaft Mounting Collar - Clamp-Type Split Design
Brand: Stafford Manufacturing Corp.
SKU: FLA-7b9c63
Price: 24.99 USD
Availability: OutOfStock

SKU:FLA-7b9c63

Precision machined Stainless Steel Shaft Mounting Collar with high clamping power and easy installation. RoHS2 and REACH compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Shaft Mounting Collar features a one-piece split design with a low-profile type for easy installation on standard round shafts or tubes. Precision machined from 303 alloy stainless steel, this collar offers high clamping power while protecting shafts from damage. It includes a flat and countersunk, tapped hole for secure mounting and is non-marring for delicate applications. Perfect for industrial settings, this collar is RoHS2 and REACH compliant, making it a reliable and durable choice for various mounting needs.

Product Specifications

Dimensional Attributes Bore Size

1 in

Dimensional Attributes Bottom Threaded Hole

1/4-20

Dimensional Attributes Distance Across Flats

1.656 in

Dimensional Attributes Mounting Screw

#10 Flat Head Cap Screw

Dimensional Attributes Outside Diameter

1.750 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.21 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

19S100MT

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786026607

Stainless Steel Shaft Mounting Collar - Clamp-Type Split Design
