Stainless Steel Shoulder Eye Bolt UNC, Grade 316-NM
Stainless Steel Shoulder Eye Bolt UNC, Grade 316-NM
SKU:STA-64f9b5
High-performance Stainless Steel Eye Bolt with 5,140 lb WLL, ASME B30.26 compliant for marine and industrial use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Shoulder Eye Bolt UNC, Grade 316-NM
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Shoulder Eye Bolt UNC, Grade 316-NM
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

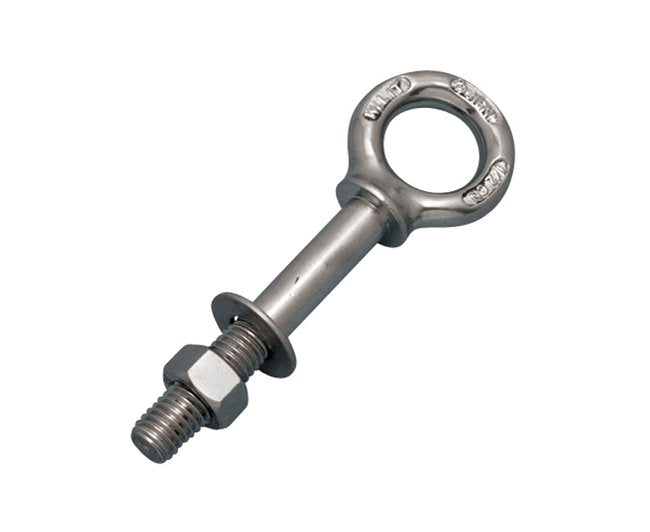

The Stainless Steel Shoulder Eye Bolt is precision machined and drop forged, meeting ASME B30.26 standards. Designed for marine and industrial applications, it features a 5,140 lb Working Load Limit (WLL). Constructed from corrosion-resistant grade 316-NM stainless steel, this Suncor exclusive bolt ensures durability and reliability for a wide range of projects.

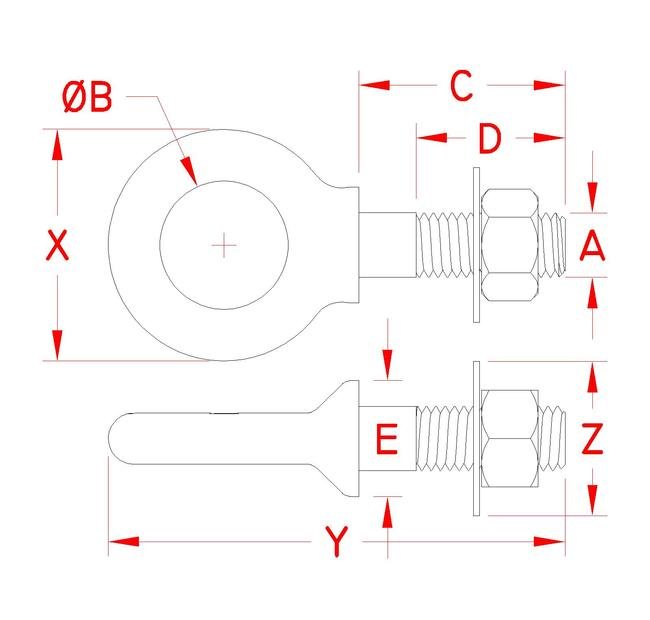

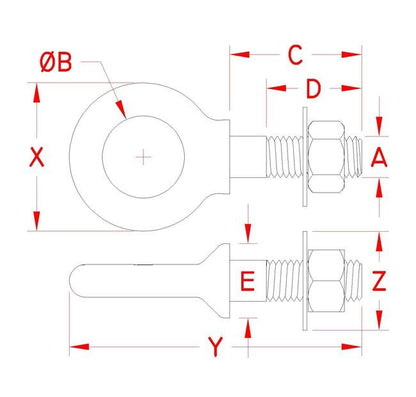

Product Specifications
Specifications Dimension A
3/4 in
Specifications Dimension B
1.50 in
Specifications Dimension C
6.00 in
Specifications Dimension D
3.00 in
Specifications Dimension E
1.31 in
Specifications Dimension X
2.76 in
Specifications Dimension Y
9.05 in
Specifications Dimension Z
1.44 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
1.58 lb
Specifications Working Load Limit Wll
5,140 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
