Stainless Steel Shoulder Eye Bolt UNC Thread 316-NM Grade for Marine & Industrial Use
Stainless Steel Shoulder Eye Bolt UNC Thread 316-NM Grade for Marine & Industrial Use
SKU:STA-eb406c
High-quality Stainless Steel Shoulder Eye Bolt for marine & industrial applications, UNC thread, 316-NM grade, sizes 1/4" to 1"
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

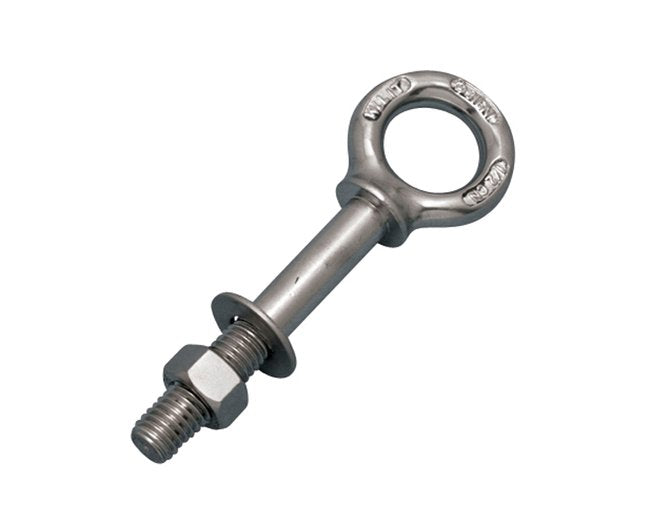

The Shoulder Eye Bolt is a premium-grade 316-NM stainless steel fastener suitable for marine and industrial applications. This kit includes one nut and one washer, ensuring a secure installation. With UNC threading and sizes ranging from 1/4" to 1", this eye bolt is designed for versatility and reliability. Its corrosion resistance and durability meet the highest standards, making it an ideal choice for projects requiring long-lasting performance in challenging environments.
Product Specifications

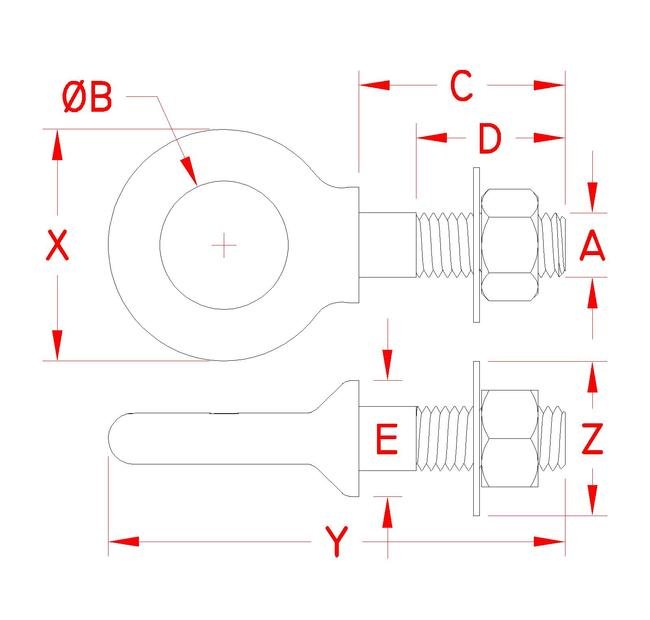

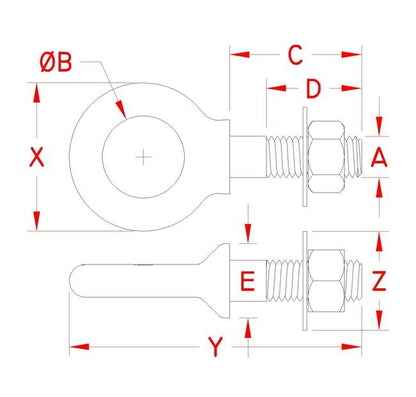

Specifications Dimension A
1/4 in
Specifications Dimension B
0.50 in
Specifications Dimension C
4.00 in
Specifications Dimension D
2.50 in
Specifications Dimension E
0.50 in
Specifications Dimension X
0.91 in
Specifications Dimension Y
5.00 in
Specifications Dimension Z
0.46 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.082 lb
Specifications Working Load Limit Wll
500 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
