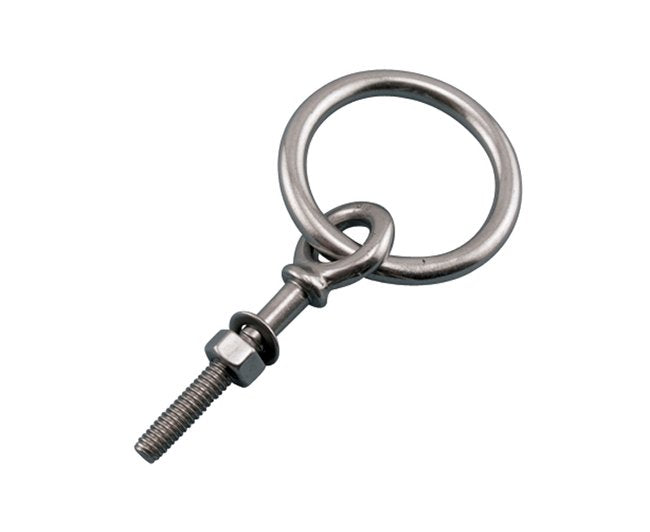

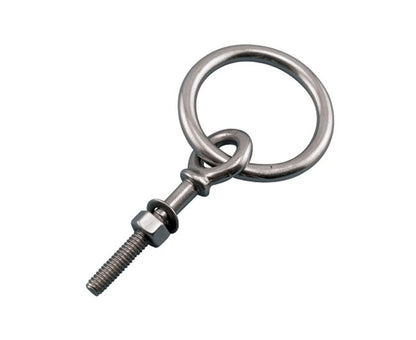

Stainless Steel Shoulder Ring Bolt UNC Thread 316 Grade

Name: Stainless Steel Shoulder Ring Bolt UNC Thread 316 Grade
Brand: Suncor Stainless, Inc.
SKU: STA-8db630
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-8db630

Durable stainless steel shoulder ring bolt with UNC thread, ideal for marine and industrial applications, sizes 1/4" to 3/4".

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Shoulder Ring Bolt, complete with a nut and washer, features UNC threading and sizes from 1/4" to 3/4" for versatile project applications. Crafted from grade 316 stainless steel, this bolt offers superior corrosion resistance and durability, ideal for marine and industrial use. With a load rating of 2000 lb and precision fabrication, this bolt from top brand Suncor ensures reliable performance in demanding environments.

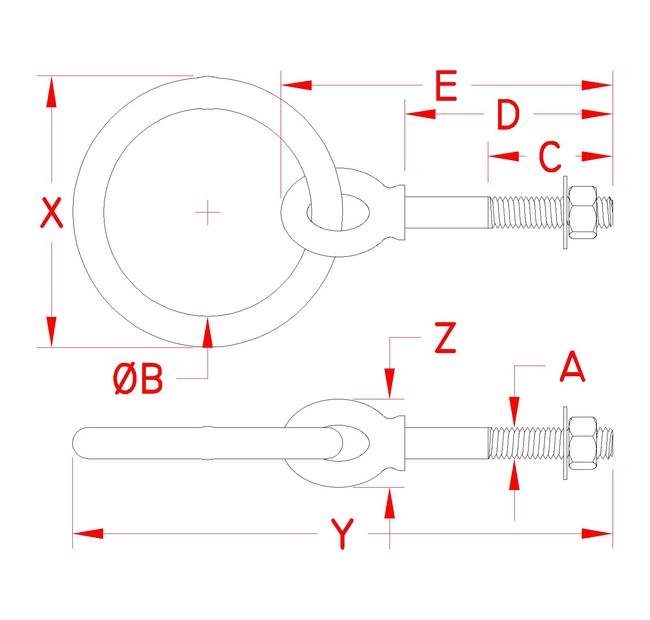

Product Specifications

Specifications Dimension A

5/8 in

Specifications Dimension B

3.00 in

Specifications Dimension C

3.00 in

Specifications Dimension D

6.00 in

Specifications Dimension E

8.50 in

Specifications Dimension X

4.25 in

Specifications Dimension Y

11.20 in

Specifications Dimension Z

1.46 in

Specifications Fabrication Type

Drop Forged | Wire Formed

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Weight

1.95 lb

Specifications Working Load Limit Wll

2000 lb

CAGE

1CXX6

NAICS

332722

PSC

5306

Stainless Steel Shoulder Ring Bolt UNC Thread 316 Grade
