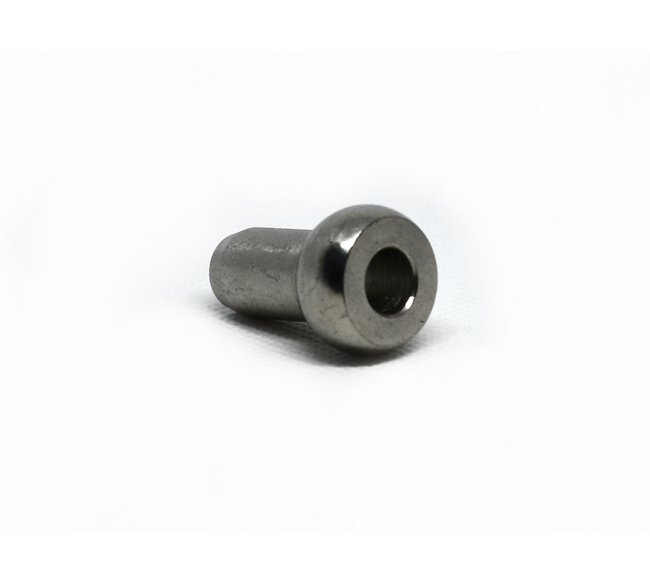

Stainless Steel Single Shank Balls MS20664-C3

Name: Stainless Steel Single Shank Balls MS20664-C3
Brand: Lexco Cable Manufacturing
SKU: MIL-a6f5ea
Price: 29.99 USD
Availability: OutOfStock

SKU:MIL-a6f5ea

Premium SST304 single shank balls designed for 3/32 cables, meeting Mil Spec MS20664-C3 for reliable performance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

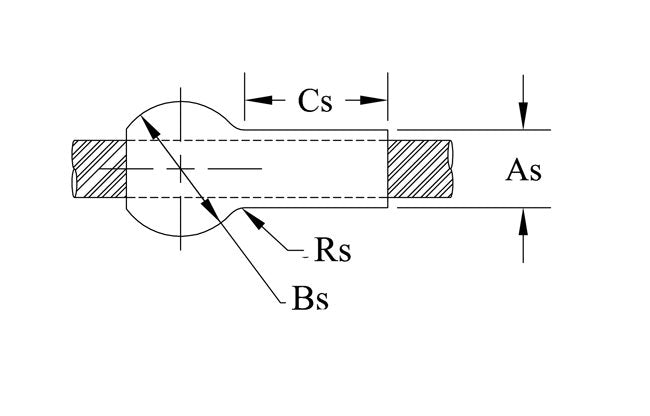

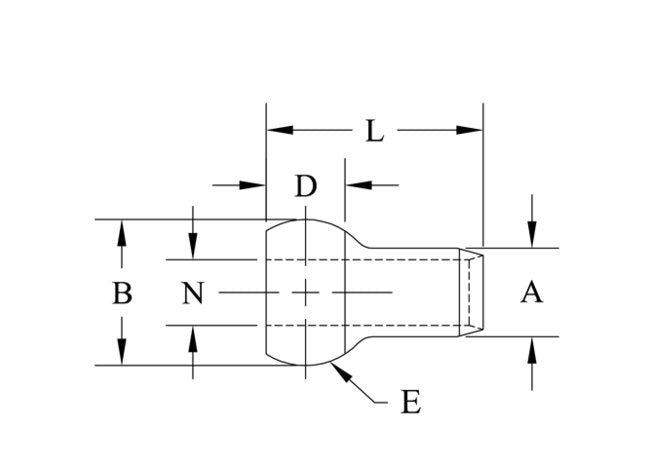

The Stainless Steel Single Shank Balls MS20664-C3 are precision-engineered for reliable machine swaging onto wire ropes or aircraft cables. Made from SST304 material, these balls ensure durability and performance. With dimensions meeting Mil Spec MS20664-C3, they are designed for cable diameters of 3/32. Before and after swaging dimensions of A, B, D, E, L, N, As, Bs, Cs, Rs guarantee a secure fit while adhering to stringent quality standards.

Product Specifications

Specifications As Diam

0.143

Specifications A Diam

0.168

Specifications Bs Spher Diam

0.253

Specifications B Diam

0.282

Specifications Cable Dia

3/32

Specifications Cs

0.234

Specifications D

0.152

Specifications E Rad Ref

0.11

Specifications L

0.384

Specifications Material

SST304

Specifications Mil Spec

MS20664-C3

Specifications N Diam

0.104

Specifications Rs Max Rad

0.019

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Single Shank Balls MS20664-C3
