Stainless Steel Single Shank Balls MS20664-C4 for Cable Swaging

Stainless Steel Single Shank Balls MS20664-C4 for Cable Swaging

SKU:MIL-24f608

Premium SST304 Single Shank Balls for secure cable swaging. Designed for 1/8" cables. Ideal for aerospace & military applications.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Stainless Steel Single Shank Balls MS20664-C4 for Cable Swaging

Stainless Steel Single Shank Balls MS20664-C4 for Cable Swaging

$29.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Single Shank Balls MS20664-C4 for Cable Swaging

Stainless Steel Single Shank Balls MS20664-C4 for Cable Swaging

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

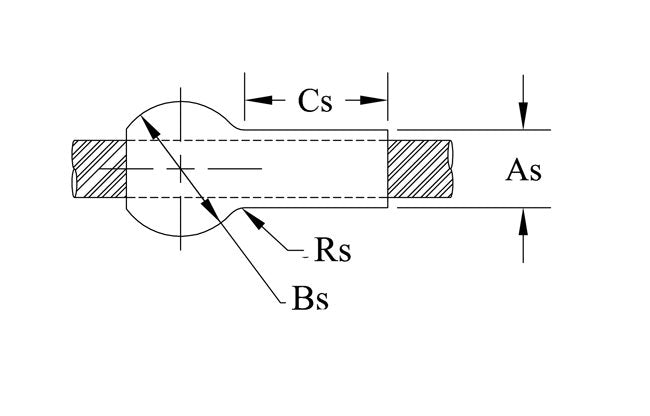

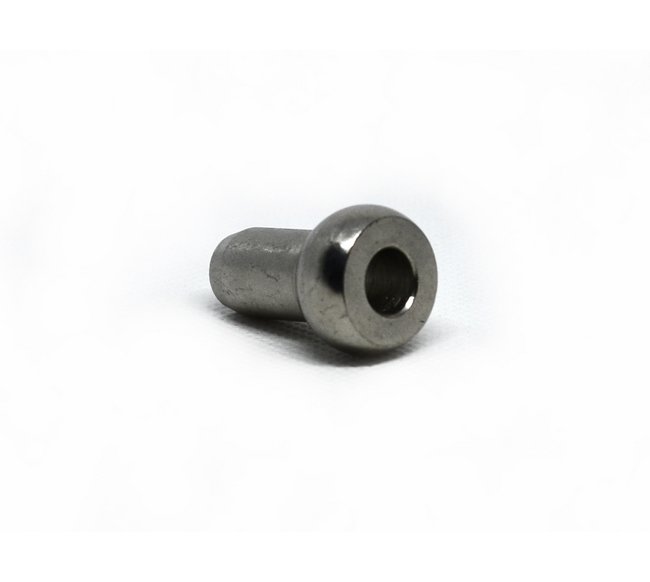

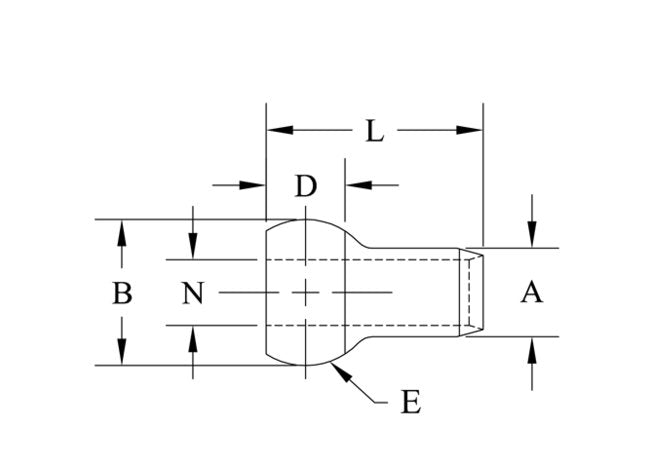

The Stainless Steel Single Shank Balls MS20664-C4 are precision-engineered for machine swaging onto wire ropes or aircraft cables. Crafted from high-grade SST304 material, these balls ensure durability and secure cable fittings. With dimensions tailored for a cable diameter of 1/8", these balls deliver optimal performance. Before swaging, dimensions A, B, D, E, Rad Ref, L, and N are impeccably designed, while after swaging, dimensions As, Bs, Cs, Rs ensure a stable finish. Note: Not suitable for cable size variations below 3/64" and above 3/8".

Product Specifications

Specifications As Diam
0.19
Specifications A Diam
0.223
Specifications Bs Spher Diam
0.315
Specifications B Diam
0.35
Specifications Cable Dia
1/8
Specifications Cs
0.313
Specifications D
0.19
Specifications E Rad Ref
0.137
Specifications L
0.5
Specifications Material
SST304
Specifications Mil Spec
MS20664-C4
Specifications N Diam
0.139
Specifications Rs Max Rad
0.023
CAGE
0T9L4
NAICS
333991
PSC
5110
