Stainless Steel Single Shank Balls MS20664-C5 for Cable Swaying

Name: Stainless Steel Single Shank Balls MS20664-C5 for Cable Swaying
Brand: Lexco Cable Manufacturing
SKU: MIL-aad470
Price: 24.99 USD
Availability: OutOfStock

SKU:MIL-aad470

High-quality Stainless Steel Single Shank Balls for secure machine swaging on cables. MIL-SPEC compliant with durable construction.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

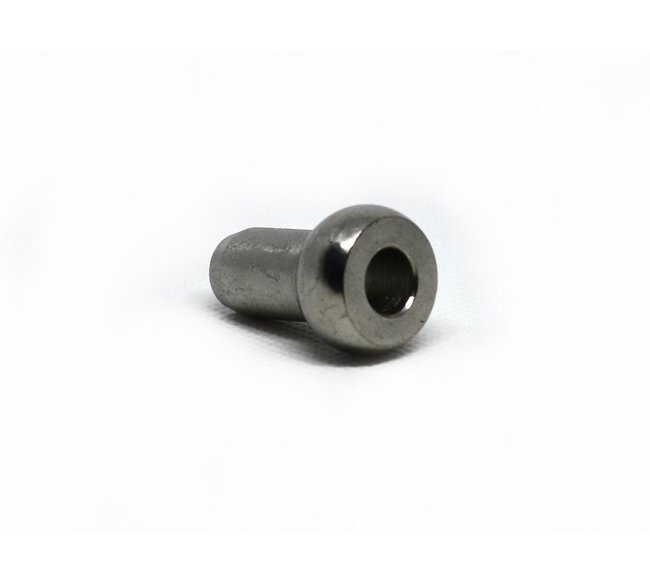

The Stainless Steel Single Shank Balls MS20664-C5 are precision-engineered for machine swaging on wire ropes and aircraft cables. Compliant with MIL-SPEC standards, these balls ensure secure connections with cable diameters of 5/32". Featuring dimensions that meet stringent military specifications, the balls guarantee precise fittings and durability. Enhance your operations with these corrosion-resistant stainless steel balls.

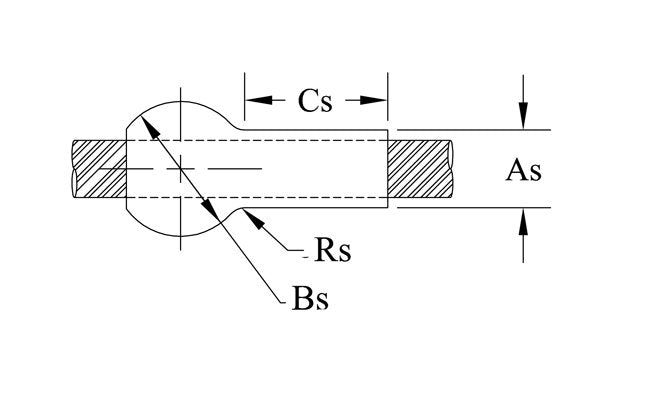

Product Specifications

Specifications As Diam

0.222

Specifications A Diam

0.259

Specifications Bs Spher Diam

0.379

Specifications B Diam

0.424

Specifications Cable Dia

5/32

Specifications Cs

0.391

Specifications D

0.228

Specifications E Rad Ref

0.165

Specifications L

0.616

Specifications Material

SST304

Specifications Mil Spec

MS20664-C5

Specifications N Diam

0.169

Specifications Rs Max Rad

0.028

CAGE

0T9L4

NAICS

332510

PSC

4030
