Stainless Steel Single Shank Balls MS20664-C6 for 3/16" Cable
Stainless Steel Single Shank Balls MS20664-C6 for 3/16" Cable
SKU:MIL-6ac9d0
Precision-engineered SST304 steel single shank balls for 3/16" cable. Compliant with military specifications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Single Shank Balls MS20664-C6 for 3/16" Cable
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Single Shank Balls MS20664-C6 for 3/16" Cable
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

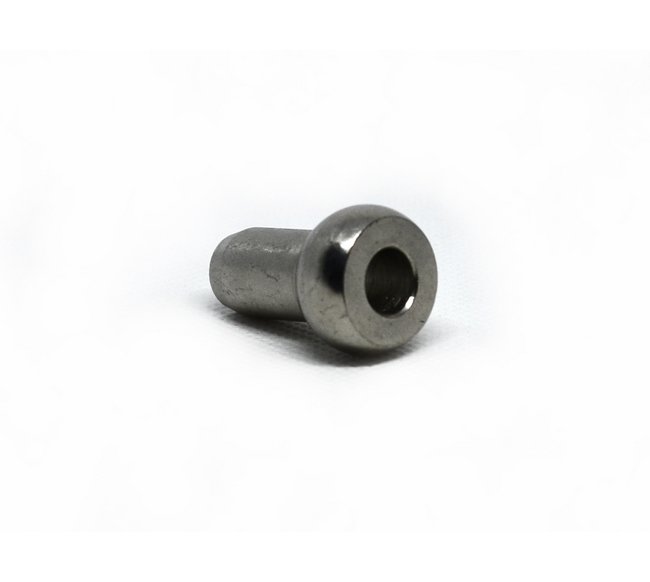

The Stainless Steel Single Shank Balls MS20664-C6 are precision-engineered to fit 3/16" cables with optimal dimensions for seamless swaging, ensuring secure wire rope connections. Crafted from high-grade SST304 material, these balls offer exceptional durability and performance. Designed for military specifications, these single shank balls meet stringent standards, providing reliable and compliant solutions for aircraft cables.

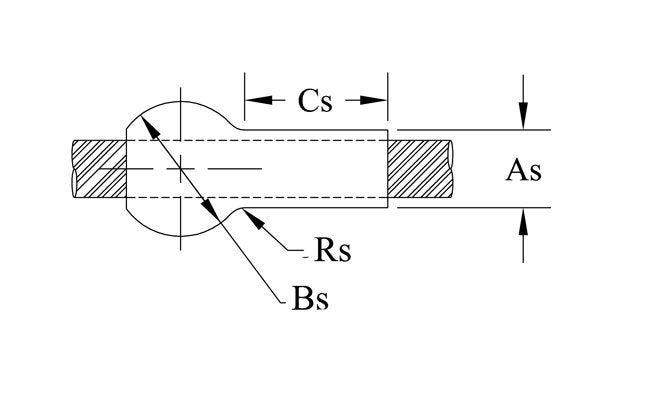

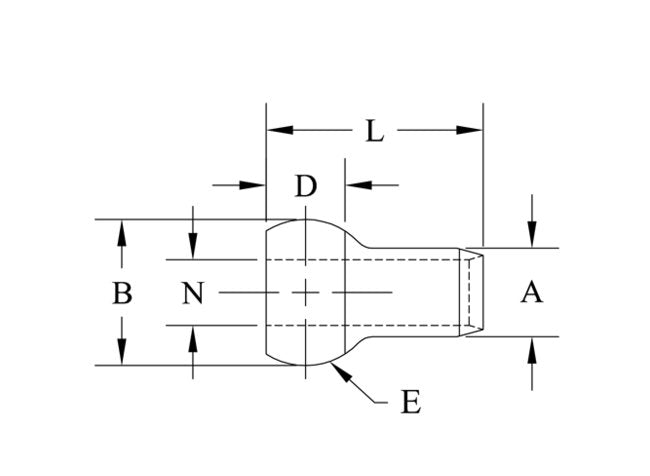

Product Specifications
Specifications As Diam
0.255
Specifications A Diam
0.298
Specifications Bs Spher Diam
0.442
Specifications B Diam
0.492
Specifications Cable Dia
3/16
Specifications Cs
0.469
Specifications D
0.265
Specifications E Rad Ref
0.192
Specifications L
0.73
Specifications Material
SST304
Specifications Mil Spec
MS20664-C6
Specifications N Diam
0.201
Specifications Rs Max Rad
0.033
CAGE
0T9L4
NAICS
332510
PSC
4030
