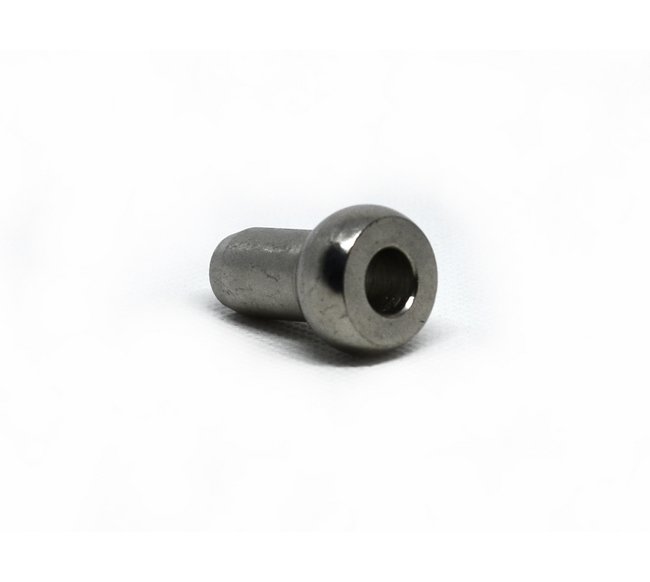

Stainless Steel Single Shank Balls MS20664-C8 for 1/4" Cable, Military Spec

Name: Stainless Steel Single Shank Balls MS20664-C8 for 1/4" Cable, Military Spec
Brand: Lexco Cable Manufacturing
SKU: MIL-b4e151
Price: 24.99 USD
Availability: OutOfStock

SKU:MIL-b4e151

Enhance cable strength with Stainless Steel Single Shank Balls. Military Spec MS20664-C8 for 1/4" cable, unparalleled durability.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your wire rope or aircraft cable with our Stainless Steel Single Shank Balls MS20664-C8 designed for precise swaging. Crafted from SST304 material, these balls ensure durability and reliability. With dimensions meeting Mil Spec standards, including A Diam. of 0.406 and L of 0.962, our product guarantees a secure fit while enhancing performance.

Product Specifications

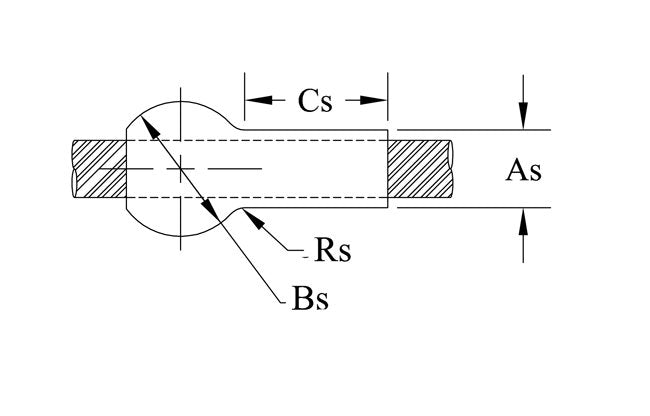

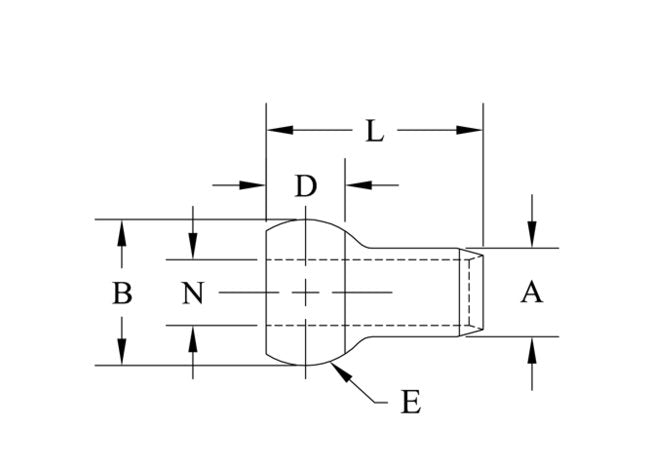

Specifications As Diam

0.348

Specifications A Diam

0.406

Specifications Bs Spher Diam

0.567

Specifications B Diam

0.629

Specifications Cable Dia

1/4

Specifications Cs

0.625

Specifications D

0.34

Specifications E Rad Ref

0.247

Specifications L

0.962

Specifications Material

SST304

Specifications Mil Spec

MS20664-C8

Specifications N Diam

0.264

Specifications Rs Max Rad

0.042

CAGE

0T9L4

NAICS

332510

PSC

4030
