Stainless Steel Single Shank Balls MS20664 for Cable Swaging

Stainless Steel Single Shank Balls MS20664 for Cable Swaging

SKU:MIL-f84f18

Precision-engineered Stainless Steel Single Shank Balls for secure cable swaging. Compliant with Mil Spec standards for military and aerospace needs.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Stainless Steel Single Shank Balls MS20664 for Cable Swaging

Stainless Steel Single Shank Balls MS20664 for Cable Swaging

$29.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Single Shank Balls MS20664 for Cable Swaging

Stainless Steel Single Shank Balls MS20664 for Cable Swaging

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

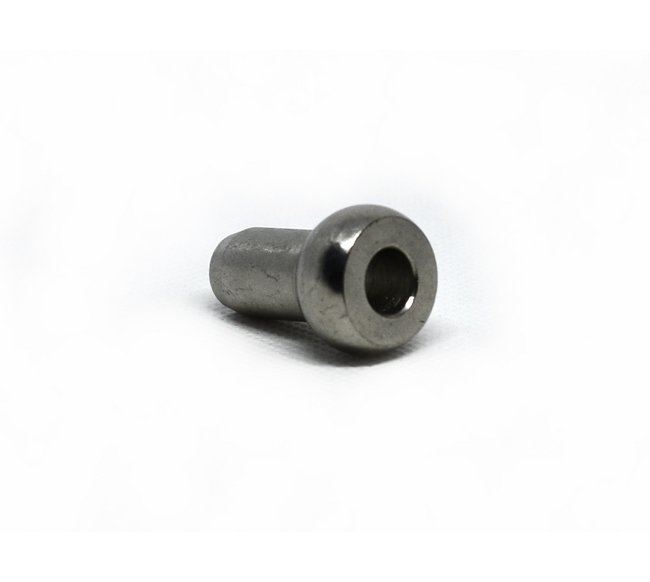

The Stainless Steel Single Shank Balls MS20664 are precision-engineered to be machine swaged to wire ropes or aircraft cables, providing secure connections for critical applications. Constructed from SST303 material, these balls are designed to fit cable diameters of 3/32 inches, with specific dimensions for pre and post-swaging applications. With compliance to commercial Mil Spec standards, these single shank balls offer durability, precise measurements, and reliable performance for military and aerospace requirements.

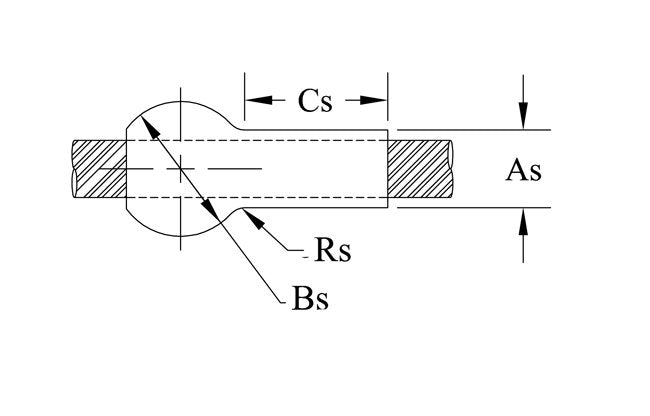

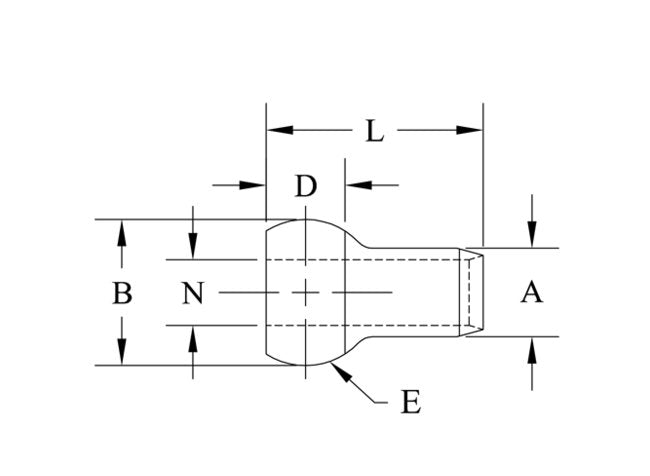

Product Specifications

Specifications As Diam
0.143
Specifications A Diam
0.168
Specifications Bs Spher Diam
0.253
Specifications B Diam
0.282
Specifications Cable Dia
3/32
Specifications Cs
0.234
Specifications D
0.152
Specifications E Rad Ref
0.11
Specifications L
0.384
Specifications Material
SST303
Specifications Mil Spec
Commercial
Specifications N Diam
0.104
Specifications Rs Max Rad
0.019
CAGE
0T9L4
NAICS
333991
PSC
5110
