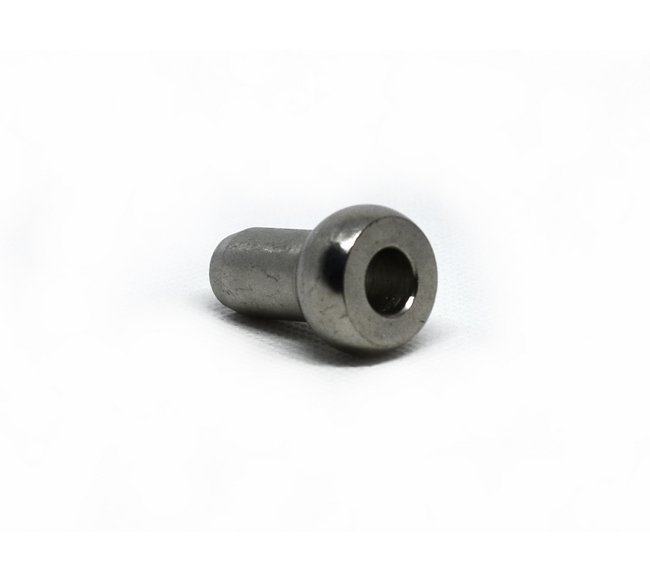

Stainless Steel Single Shank Balls MS20664 for Cable Swaging

Name: Stainless Steel Single Shank Balls MS20664 for Cable Swaging
Brand: Lexco Cable Manufacturing
SKU: MIL-090a82
Price: 29.99 USD
Availability: OutOfStock

SKU:MIL-090a82

High-quality stainless steel single shank balls designed for secure cable swaging, meeting Mil Spec MS20664-C10. Ensure precise connections with our durable balls.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your wire rope or aircraft cable with our stainless steel single shank balls designed to meet Mil Spec MS20664-C10. Made of SST304 material, these balls offer precise dimensions for cable diameters, before and after swaging. Ensure secure connections and optimal performance with our high-quality single shank balls.

Product Specifications

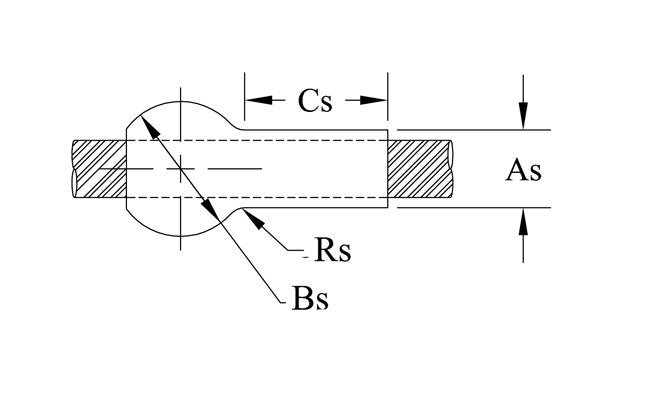

Specifications As Diam

0.413

Specifications A Diam

0.48

Specifications Bs Spher Diam

0.694

Specifications B Diam

0.768

Specifications Cable Dia

5/16

Specifications Cs

0.813

Specifications D

0.415

Specifications E Rad Ref

0.302

Specifications L

1.193

Specifications Material

SST304

Specifications Mil Spec

MS20664-C10

Specifications N Diam

0.328

Specifications Rs Max Rad

0.046

CAGE

0T9L4

NAICS

333991

PSC

5110
