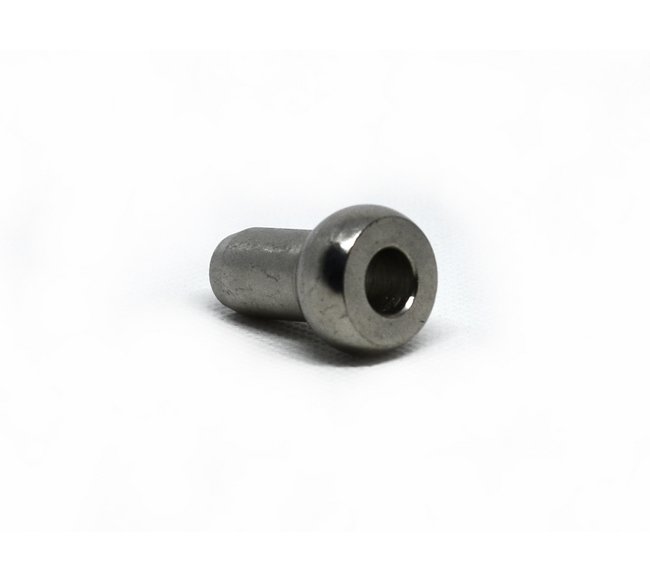

Stainless Steel Single Shank Balls MS20664 for Military Specification

Stainless Steel Single Shank Balls MS20664 for Military Specification

SKU:MIL-0af988

Precision-engineered Stainless Steel Single Shank Balls MS20664 for military applications, meeting commercial Mil Spec standards.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Stainless Steel Single Shank Balls MS20664 for Military Specification

Stainless Steel Single Shank Balls MS20664 for Military Specification

$24.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Single Shank Balls MS20664 for Military Specification

Stainless Steel Single Shank Balls MS20664 for Military Specification

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

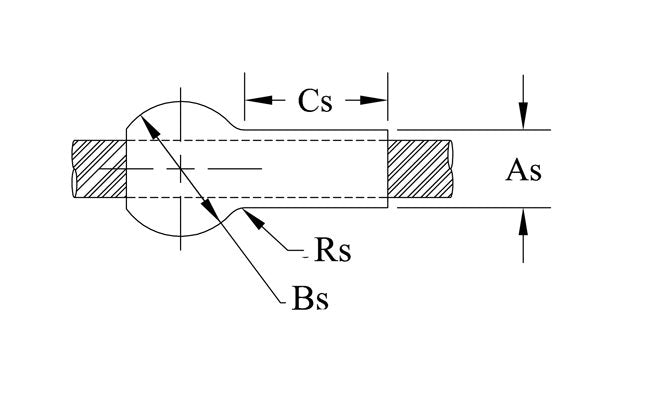

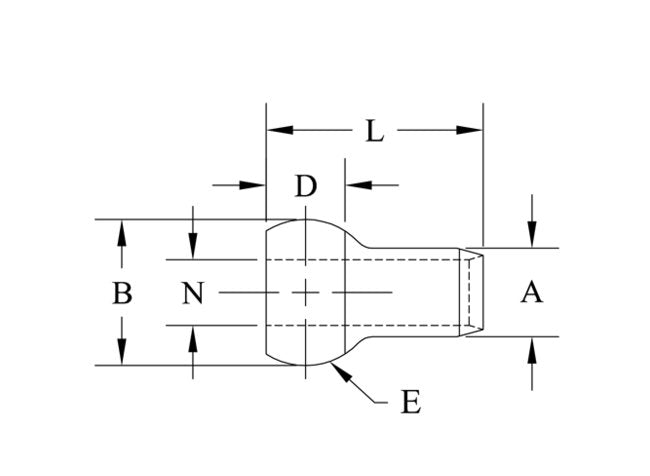

The Stainless Steel Single Shank Balls MS20664 are precision-engineered for machine swaging onto wire ropes or aircraft cables with a diameter of 3/32. Constructed from high-grade SST303 material, these balls ensure durability and reliability in demanding military applications. Meeting commercial Mil Spec standards, the balls feature precise dimensions for seamless integration. Before swaging, dimensions A, B, D, E, Rad Ref, L, N offer optimal fit, while after swaging, dimensions As, Bs, Cs, Rs guarantee secure connections. Notably, they are available in sizes excluding .012"-.036", 3/64", and 3/8" to suit a wide range of requirements.

Product Specifications

Specifications As Diam
0.143
Specifications A Diam
0.168
Specifications Bs Spher Diam
0.225
Specifications B Diam
0.250
Specifications Cable Dia
3/32
Specifications Cs
0.234
Specifications D
0.152
Specifications E Rad Ref
0.11
Specifications L
0.384
Specifications Material
SST303
Specifications Mil Spec
Commercial
Specifications N Diam
0.104
Specifications Rs Max Rad
0.019
CAGE
0T9L4
NAICS
332510
PSC
4030
