Stainless Steel Single Shank Balls MS20664 for Military Specifications

Name: Stainless Steel Single Shank Balls MS20664 for Military Specifications
Brand: Lexco Cable Manufacturing
SKU: MIL-be82ad
Price: 24.99 USD
Availability: OutOfStock

SKU:MIL-be82ad

Precision-engineered stainless steel single shank balls for secure machine swaging. Compliant with Mil-Spec requirements. Available in various sizes for diverse uses.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

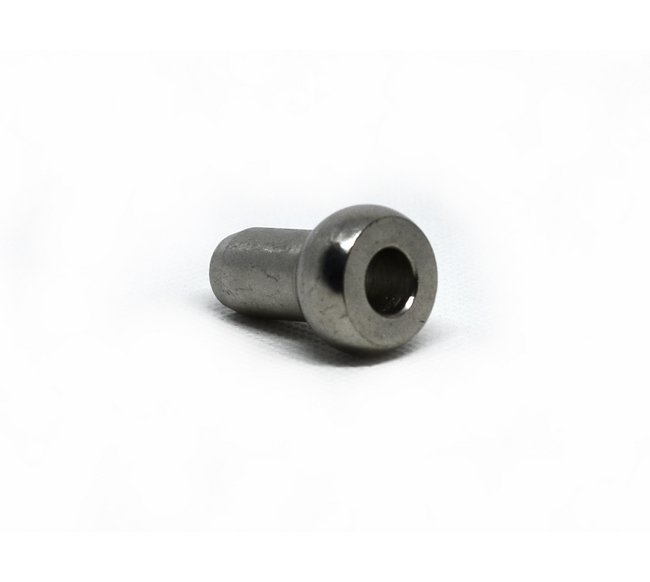

Crafted from SST304 stainless steel, the Single Shank Balls MS20664 are precision-engineered for machine swaging to wire ropes or aircraft cables. With exact dimensions meeting Mil-Spec requirements including cable diameter, spherical diameter, and radial dimensions, these balls ensure secure fittings. Non-MS sizes .012"-.036", 3/64", & 3/8" also available for varied applications.

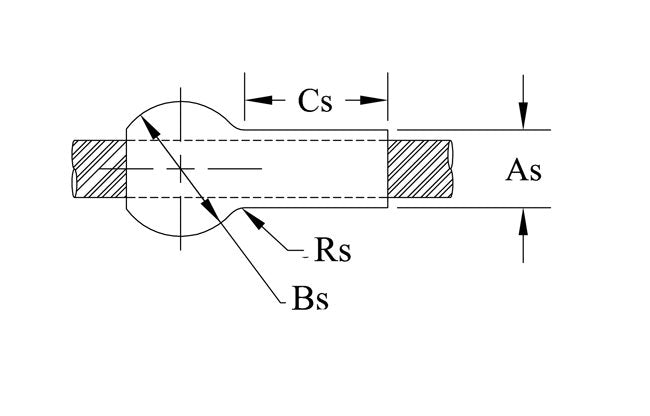

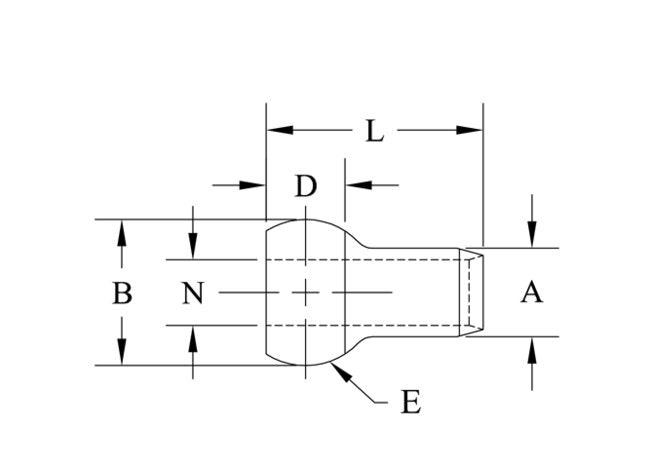

Product Specifications

Specifications As Diam

0.112

Specifications A Diam

0.132

Specifications Bs Spher Diam

0.19

Specifications B Diam

0.212

Specifications Cable Dia

3/64

Specifications Cs

0.156

Specifications D

0.114

Specifications E Rad Ref

0.083

Specifications L

0.269

Specifications Material

SST304

Specifications Mil Spec

Commercial

Specifications N Diam

0.056

Specifications Rs Max Rad

0.014

CAGE

0T9L4

NAICS

332510

PSC

4030
