Stainless Steel Single Shank Balls MS20664 for Military Specifications

Name: Stainless Steel Single Shank Balls MS20664 for Military Specifications
Brand: Lexco Cable Manufacturing
SKU: MIL-8d484d
Price: 24.99 USD
Availability: OutOfStock

SKU:MIL-8d484d

Premium Stainless Steel Single Shank Balls for secure wire rope connections, Mil Spec compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

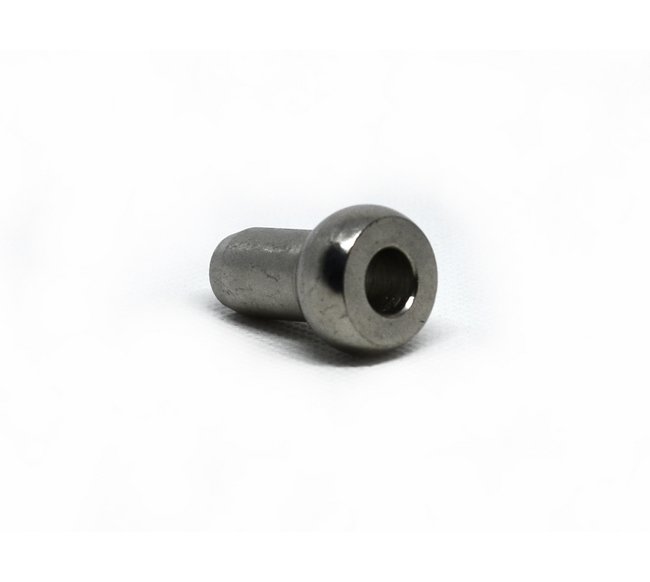

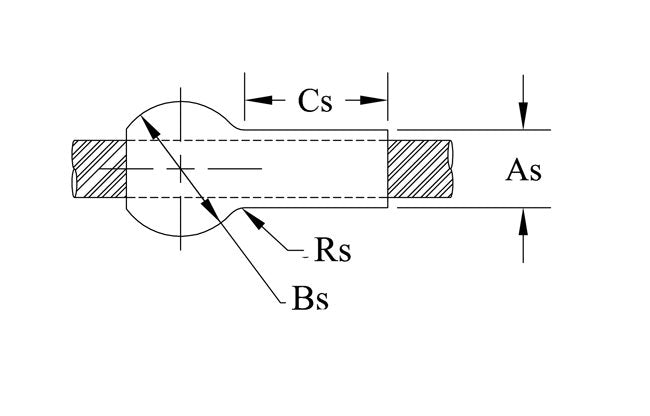

The Stainless Steel Single Shank Balls MS20664 are expertly designed for machine swaging to wire ropes or aircraft cables, ensuring secure and durable connections. Made of SST303 material with precise dimensions, these shank balls deliver reliable performance. Compliant with commercial Mil Spec standards, featuring pre-swaging and post-swaging dimensions for seamless integration.

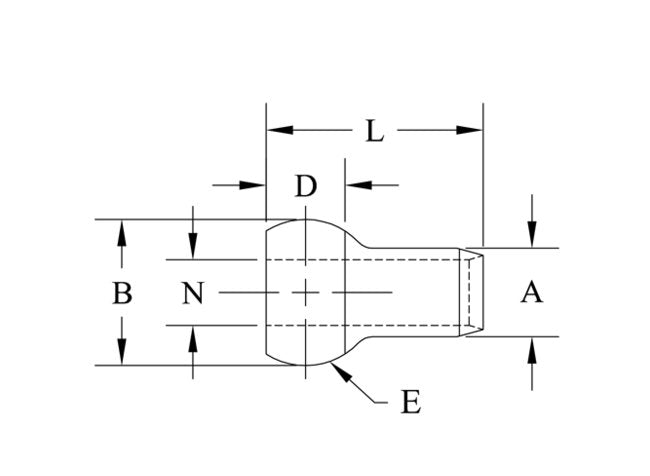

Product Specifications

Specifications As Diam

0.112

Specifications A Diam

0.132

Specifications Bs Spher Diam

0.19

Specifications B Diam

0.212

Specifications Cable Dia

3/64

Specifications Cs

0.156

Specifications D

0.114

Specifications E Rad Ref

0.083

Specifications L

0.269

Specifications Material

SST303

Specifications Mil Spec

Commercial

Specifications N Diam

0.056

Specifications Rs Max Rad

0.014

CAGE

0T9L4

NAICS

332510

PSC

4030
