Stainless Steel Single Shank Balls MS20664 - Military Specification

Name: Stainless Steel Single Shank Balls MS20664 - Military Specification
Brand: Lexco Cable Manufacturing
SKU: MIL-aeb299
Price: 29.99 USD
Availability: OutOfStock

SKU:MIL-aeb299

Premium SST303 stainless steel single shank balls for secure machine swaging onto cables. Meet Mil Spec standards for reliable performance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

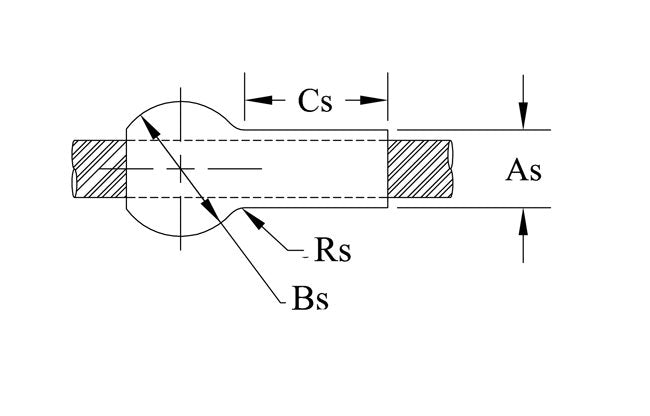

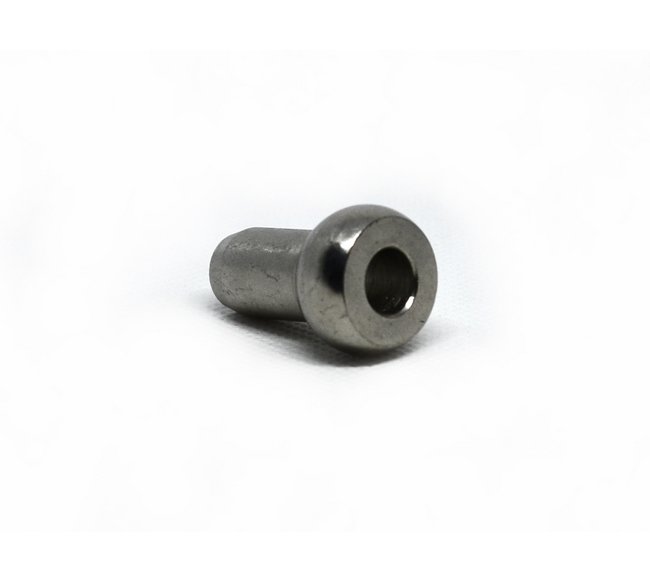

The Stainless Steel Single Shank Balls MS20664 are precision-engineered components designed for machine swaging onto wire ropes or aircraft cables. Constructed from SST303 material, these balls feature dimensions tailored for a 1/16" cable. With before and after swaging measurements ensuring a secure fit, these balls exhibit exceptional quality and adherence to commercial Mil Spec standards.

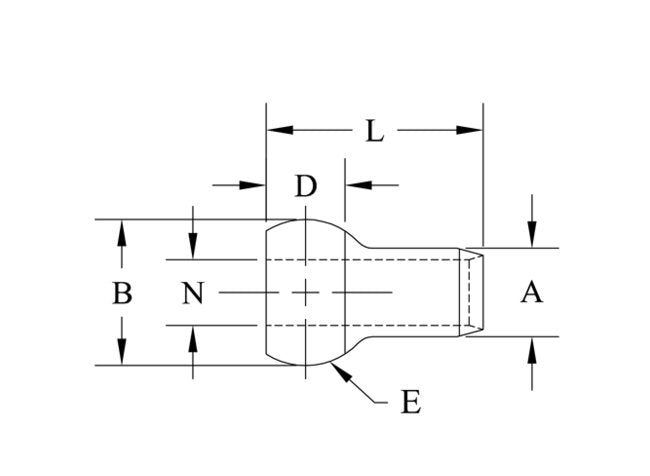

Product Specifications

Specifications As Diam

0.112

Specifications A Diam

0.132

Specifications Bs Spher Diam

0.19

Specifications B Diam

0.212

Specifications Cable Dia

1/16

Specifications Cs

0.156

Specifications D

0.114

Specifications E Rad Ref

0.083

Specifications L

0.269

Specifications Material

SST303

Specifications Mil Spec

Commercial

Specifications N Diam

0.073

Specifications Rs Max Rad

0.014

CAGE

0T9L4

NAICS

332510

PSC

4030
