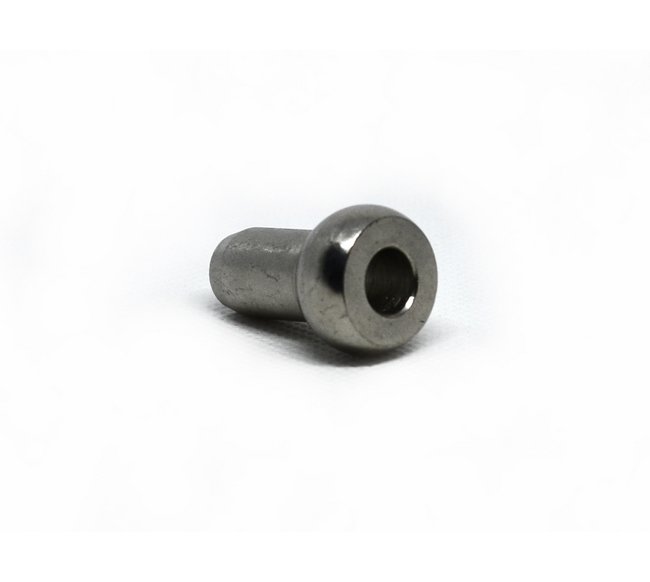

Stainless Steel Single Shank Balls MS20664 - Military Specification

Stainless Steel Single Shank Balls MS20664 - Military Specification

SKU:MIL-676efd

High-quality Stainless Steel Single Shank Balls MS20664 - Mil Spec compliant for secure cable connections. Ideal for military and aerospace use.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Stainless Steel Single Shank Balls MS20664 - Military Specification

Stainless Steel Single Shank Balls MS20664 - Military Specification

$24.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Single Shank Balls MS20664 - Military Specification

Stainless Steel Single Shank Balls MS20664 - Military Specification

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

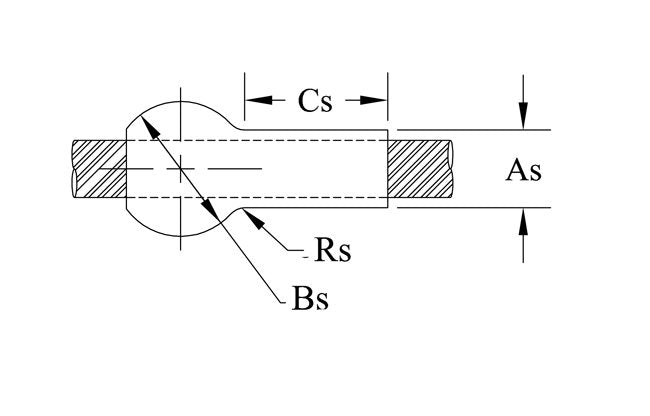

The Stainless Steel Single Shank Balls MS20664 are precision-engineered to machine swage seamlessly onto wire ropes or aircraft cables, ensuring reliable and secure connections. Made from high-quality SST303 material, these balls are designed to fit cable diameters of 3/16 inches, with precise before and after swaging dimensions for optimal performance. Compliant with commercial Mil Spec standards, these single shank balls offer durability, strength, and dimensional accuracy, making them ideal for military, aerospace, and industrial applications.

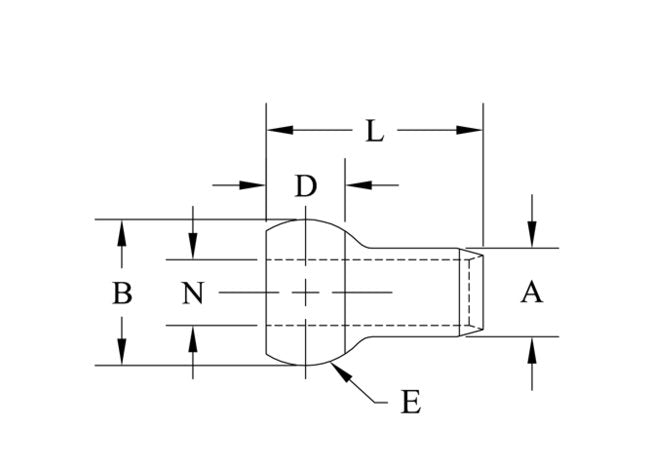

Product Specifications

Specifications As Diam
0.255
Specifications A Diam
0.298
Specifications Bs Spher Diam
0.442
Specifications B Diam
0.492
Specifications Cable Dia
3/16
Specifications Cs
0.469
Specifications D
0.265
Specifications E Rad Ref
0.192
Specifications L
0.73
Specifications Material
SST303
Specifications Mil Spec
Commercial
Specifications N Diam
0.201
Specifications Rs Max Rad
0.033
CAGE
0T9L4
NAICS
332510
PSC
4030
