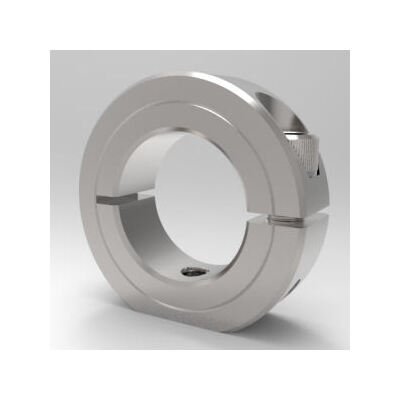

Stainless Steel Split Clamp Shaft Mounting Collar

Name: Stainless Steel Split Clamp Shaft Mounting Collar
Brand: Stafford Manufacturing Corp.
SKU: FLA-68d3d9
Price: 15.99 USD
Availability: OutOfStock

SKU:FLA-68d3d9

Precision machined Stainless Steel Split Clamp Shaft Mounting Collar with high clamping power. RoHS2 & REACH compliant.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Split Clamp Shaft Mounting Collar is a versatile solution for mounting shafts securely. Its precision machined design ensures a non-marring grip on standard round shafts or thin-wall tubes. Featuring a low profile, this collar is easy to adjust and offers high clamping power. With a smooth bore that protects shafts from damage, it includes a flat and countersunk, tapped hole for easy mounting to surfaces or components. This collar is RoHS2 and REACH compliant, making it ideal for various procurement standards.

Product Specifications

Dimensional Attributes Bore Size

1-1/4 in

Dimensional Attributes Bottom Threaded Hole

1/4-20

Dimensional Attributes Distance Across Flats

1.970 in

Dimensional Attributes Mounting Screw

#10 Flat Head Cap Screw

Dimensional Attributes Outside Diameter

2.063 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.28 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

19S104MT

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786026621

Stainless Steel Split Clamp Shaft Mounting Collar
