Stainless Steel Stabilized Connector Valve Pair with Flange, SV Series
Stainless Steel Stabilized Connector Valve Pair with Flange, SV Series
SKU:NOS-7f4302
High-pressure Stainless Steel Stabilized Connector Valve Pair with Flange for precise gas flow. Durable construction with safety features.
Regular price
$647.65
Regular price
Sale price
$647.65
Unit price
per
Initiate Order
Stainless Steel Stabilized Connector Valve Pair with Flange, SV Series
$647.65
Quantity: 1
Claim Your Seller Account
Stainless Steel Stabilized Connector Valve Pair with Flange, SV Series
$647.65
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

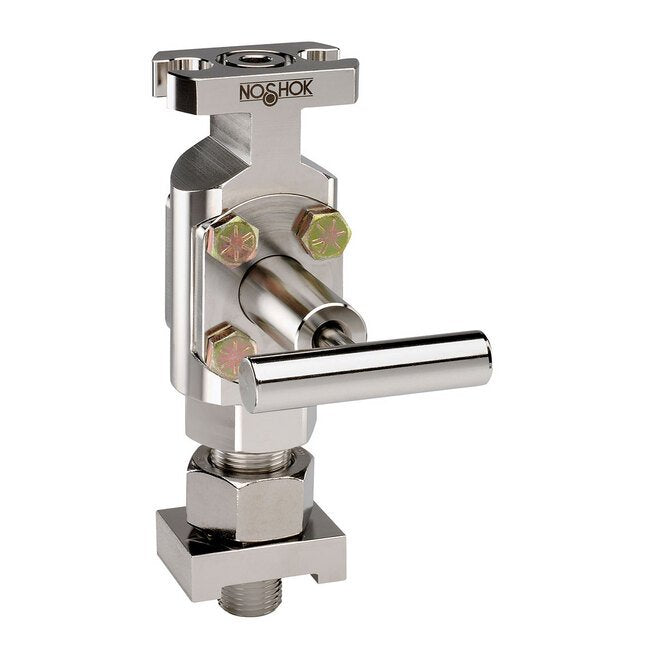

The Stainless Steel Stabilized Connector Valve Pair with Adapter Flange from NOSHOK, Inc. is a robust solution designed for reliability in critical applications. This pair features a 1/2 in NPT connection, with a 0.375 in bore for unrestricted gas flow. With a pressure rating of 6,000 psi at 200°F, stainless steel construction, and blow-out proof stem, it ensures safety and durability. The integral block valve with non-rotating stem tip, Acetal seat, and PTFE gaskets enables bidirectional flow and easy maintenance. This valve pair meets stringent industry standards for high-performance installations.
Product Specifications
Additional Information Additional Information
Non-rotating stem tip standard on block valvesBlow-out proof stem provides a secondary stem seal in the full open positionFeatures a replaceable Acetal seat, and straight through porting for bidirectional, high capacity flow and easy roddable cleaning on the block valvesMetal body-to-bonnet and body-to-flange plug with secondary o-ring seals FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and gallingIncludes PTFE gaskets and carbon steel bolts for manifold installationOptional dielectric barrier creates a non-conductive shield between the instrument and the orifice fitting
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Dielectric Kits Dk Series

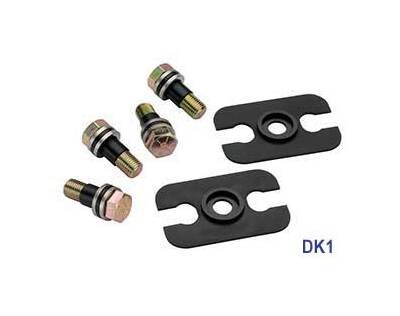

Dielectric Kits are designed to maintain the integrity and reliability of the pipeline and piping system through safety and corrosion protection. Dielectric Kits provide a non-conductive barrier between the process piping and the instrument and isolate components from the effects of electrical current. By eliminating metal-to-metal contact, current is halted to prevent corrosion and aid in the cathodic protection of the system.One Piece Dielectric Gasket, Pair, Steel, Acetal (DK1)One Piece Dielectric Gasket, Pair with Stainless Steel Bolts, Stainless Steel, Acetal (DK1-SS)PTFE Gasket with Dielectric Shim, Pair, Steel, PTFE, PVC (DK2)DK1Single piece design combining a Acetal sealing gasket and Acetal dielectric shimBolts, washers and dielectric bushings are included with the kitsCannot be used in conjunction with seal rings or o-ringsSeal rings or o-rings not requiredDK2Used as an alternative to a one-piece design when a separate sealing gasket or o-ring is requiredTwo piece design consisting of a PTFE sealing gasket and PVC dielectric shimBolts, washers and dielectric bushings are included with the kitsSpecifications:Material: Acetal, PVCMax operating temp 150 ºFDielectric strength exceeds 1/32 air arc gap approximately 2,500 VdcAll 316SS products meet the requirements of NACE MR0175/ISO 15156-3.
Options And Accessories Direct Connect Assembly For Oil And Gas

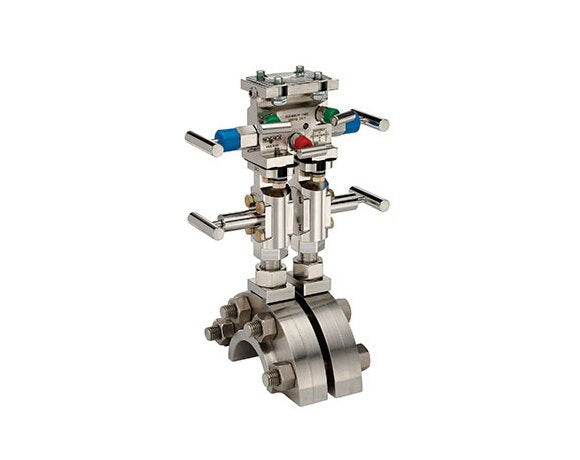

The NOSHOK Direct Connect Assembly provides an installation that keeps the meter close to the orifice taps for accurate flow measurements.
Options And Accessories Installed Options And Accessories

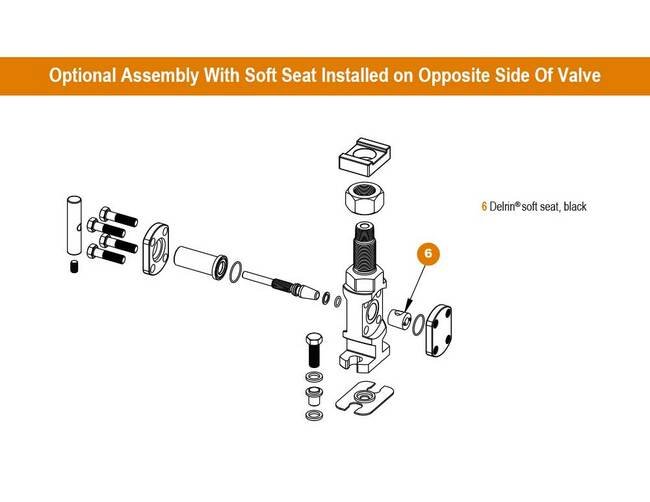

Low temperature FKM o-ring (VT3)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Bolt Material
Carbon Steel
Specifications Connection Size
1/2 in
Specifications Connection Type
National Pipe Thread (NPT), Flange
Specifications Connector Type

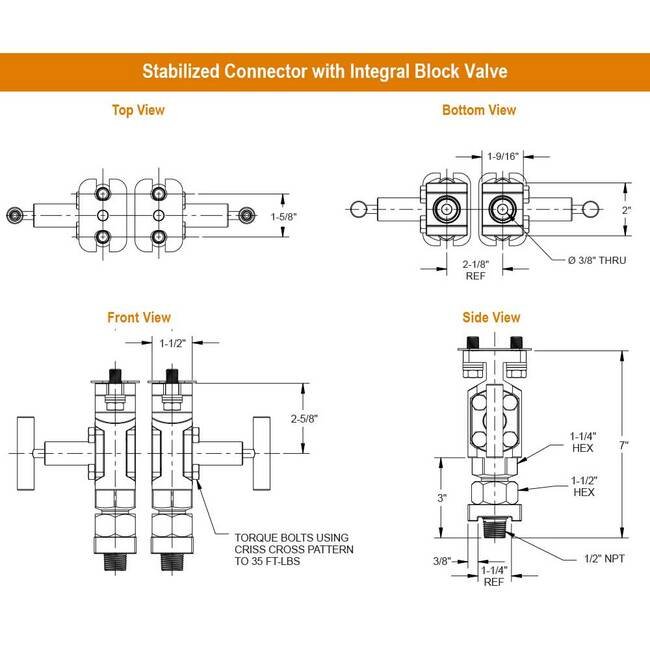

Stabilized connector pair with integral valve, flange adapter (For Round installation, orifice flange)
Specifications Flow Coefficient Cv
3.0
Specifications List Price
647.65 USD
Specifications Material
Stainless Steel
Specifications Orifice Size
0.375 in
Specifications Pressure Rating At 200 Degree Fahrenheit F Temper
6,000 psi
Specifications Related Items
VHS, 316 Stainless Steel Vertical to Horizontal Manifold Adapter
Specifications Series
SV
Specifications Stem Seal And Type
All 316 Stainless Steel stems with FKM o-ring and PTFE back-up ring below the threads
Specifications Type
Stabilized Connector
Specifications Warranty
3 y
Specifications Weight
10.6 lb
