Stainless Steel Stackable Shaft Mounting Collar

Name: Stainless Steel Stackable Shaft Mounting Collar
Brand: Stafford Manufacturing Corp.
SKU: FLA-8e4109
Price: 40.53 USD
Availability: OutOfStock

SKU:FLA-8e4109

The durable Stainless Steel Stackable Shaft Collar offers secure mounting and easy adjustment for versatile applications.

$40.53

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

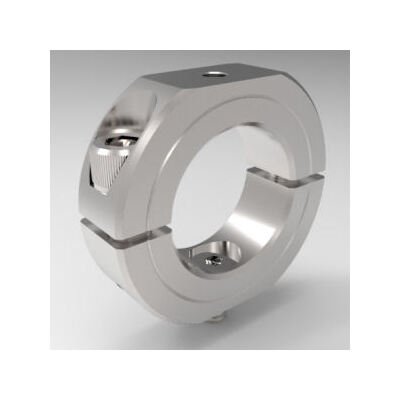

The Stainless Steel Stackable Shaft Mounting Collar is a versatile two-piece clamp-type collar designed to securely mount shafts to components. Featuring a precision machined stainless steel construction with drilled and tapped flats for easy attachment, it offers high clamping power and non-marring adjustment. This collar is stackable and can be disassembled, making it ideal for a wide range of applications including standard round shafts, thin wall tubes, or split hubs. With a low-profile design and included mounting screw, this collar is a durable and convenient solution for various mounting needs.

Product Specifications

Dimensional Attributes Bore Size

1 in

Dimensional Attributes Bottom Threaded Hole

1/4-20

Dimensional Attributes Distance Across Flats

1.562 in

Dimensional Attributes Mounting Screw

#10 Flat Head Cap Screw

Dimensional Attributes Outside Diameter

1.750 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Top Threaded Hole

10-24

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.19 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications List Price

40.53 USD

Specifications Material

Stainless Steel

Specifications Part Number

19S100ST

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786026249
