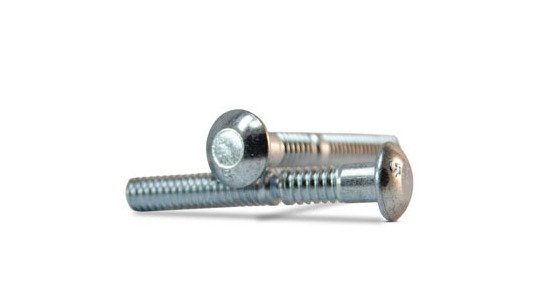

Stainless Steel Standard Brazier Head Lock Bolt - 1.770 Inch

Name: Stainless Steel Standard Brazier Head Lock Bolt - 1.770 Inch
Brand: Ornit USA
SKU: STA-fc7251
Price: 9.99 USD
Availability: OutOfStock

SKU:STA-fc7251

High-quality Stainless Steel Brazier Head Lock Bolt - 1.770 Inch, with zinc finish for corrosion resistance.

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1.770 Inch Stainless Steel Standard Brazier Head Lock Bolt by Ornit is a high-quality fastening solution crafted from durable stainless steel. With a head width ranging from 0.475 to 0.525 inches, this bolt ensures secure fastening. Its zinc finish offers corrosion resistance, making it ideal for industrial applications. This bolt has a maximum mandrel length of 1.770 inches, meeting stringent quality standards for reliability and performance.

Product Specifications

Dimensions Diameter

1/4 in

Dimensions Dimension A

0.254 to 0.259 in

Dimensions Maximum Grip Range

0.188 in

Dimensions Maximum Head Diameter

0.525 in

Dimensions Maximum Hole Diameter

0.266 in

Dimensions Maximum Hole Size

0.266 in

Dimensions Maximum Length

1.922 in

Dimensions Maximum Mandrel Length

1.770 in

Dimensions Minimum Grip Range

0.313 in

Dimensions Minimum Head Diameter

0.475 in

Dimensions Minimum Hole Diameter

0.256 in

Dimensions Minimum Length

1.781 in

Dimensions Minimum Mandrel Length

1.645 in

Dimensions Minimum Shear Strength

850 in

Dimensions Minimum Tensile Strength

816 in

Dimensions Nominal Drill Side

0.261 in

Dimensions Nominal Head Diameter

0.500 in

Dimensions Nominal Mandrel Length

1.708 in

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc

Technical Specs Head B

0.475 to 0.525 in

Technical Specs Head C

0.136 to 0.152 in

Technical Specs Head Shape

Braizier Head

Technical Specs Material

Stainless Steel
