Stainless Steel Straight Coupling - 22mm, DIN 2353 Compression Fitting
Stainless Steel Straight Coupling - 22mm, DIN 2353 Compression Fitting
SKU:FIT-b5dc20
Stainless Steel Straight Coupling for precise DIN 2353 Compression fittings. Reliable performance at 160 bar.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Straight Coupling - 22mm, DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Straight Coupling - 22mm, DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

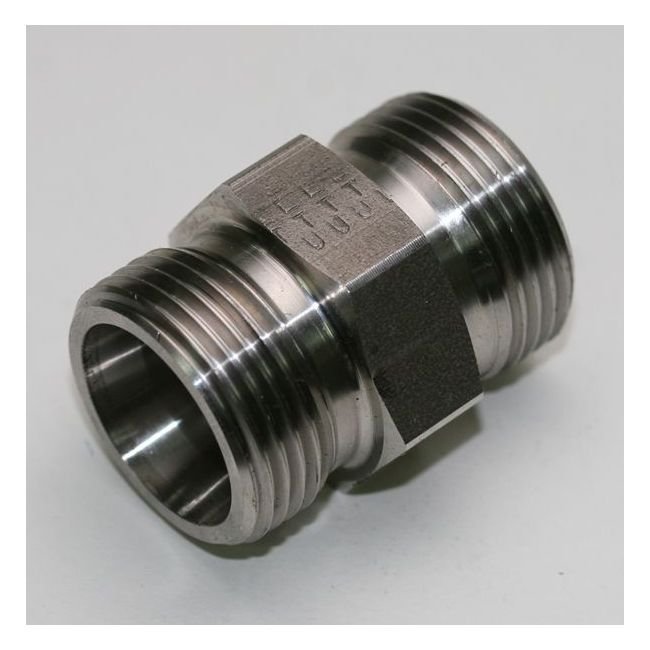

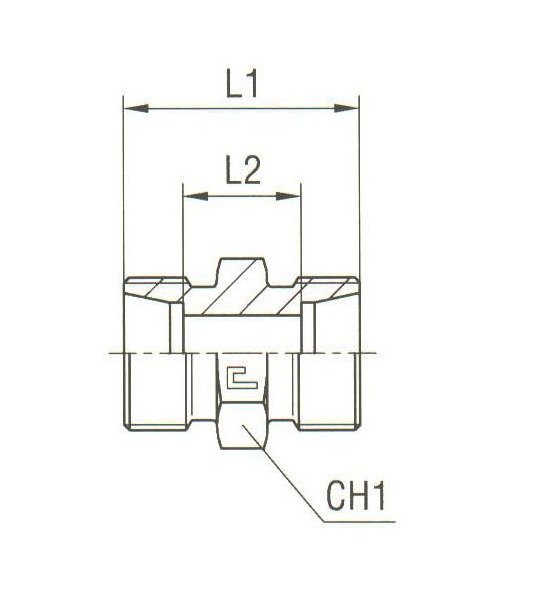

The Stainless Steel Straight Coupling - Body Only is designed for light-duty applications, featuring a tube diameter of 22mm and a nominal operating pressure of 160 bar. Crafted from high-grade stainless steel, this coupling ensures durability and reliable performance. With dimensions L1: 35.0 mm, L2: 20.0 mm, and CH1: 32 mm, it meets DIN 2353 standards, making it ideal for precision fittings in various systems.
Product Specifications
Specifications Ch1
32 mm
Specifications L1
35.0 mm
Specifications L2
20.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
