Stainless Steel Straight Coupling DIN 2353 Compression Fitting

Name: Stainless Steel Straight Coupling DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-8fc774
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-8fc774

Stainless Steel Straight Coupling for light-duty applications, DIN 2353 compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

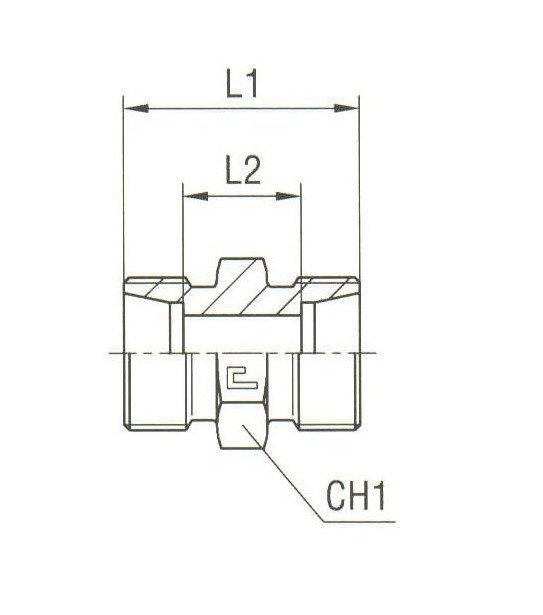

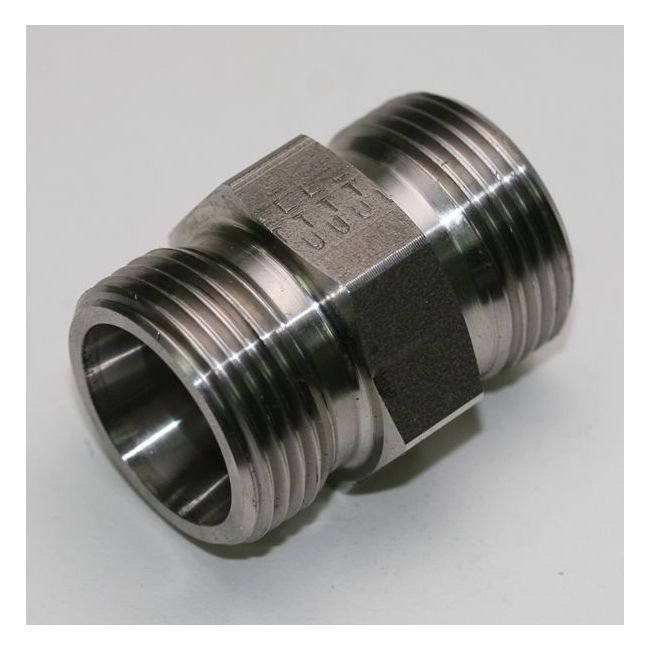

The Stainless Steel Straight Coupling - Body Only is designed for light-duty applications with a tube diameter of 10.0 mm. With a nominal operating pressure of 315 bar, this coupling meets DIN 2353 standards. Its precise dimensions, including L1 at 27.0 mm and L2 at 13.0 mm, ensure a secure and leak-free connection. Ideal for hydraulic systems requiring reliable performance.

Product Specifications

Specifications Ch1

17.0 mm

Specifications L1

27.0 mm

Specifications L2

13.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Stainless Steel Straight Coupling DIN 2353 Compression Fitting
