Stainless Steel Straight Coupling - DIN 2353 Compression Fitting
Stainless Steel Straight Coupling - DIN 2353 Compression Fitting
SKU:FIT-5332d9
Heavy-duty stainless steel straight coupling fitting for high-pressure systems, DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Straight Coupling - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Straight Coupling - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

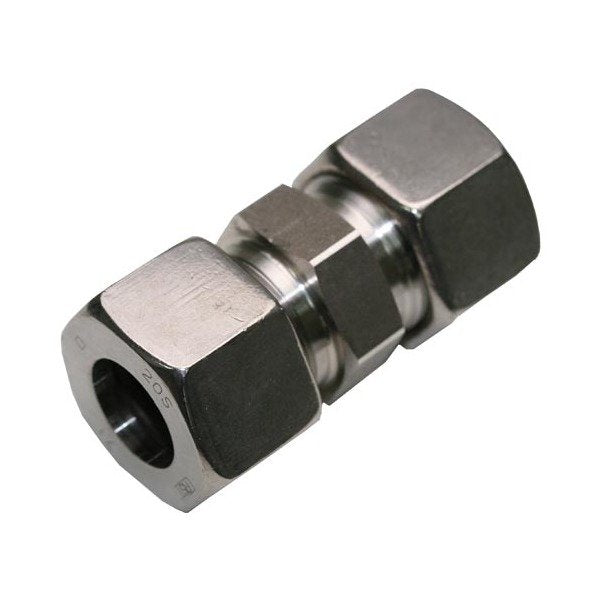

The Stainless Steel Straight Coupling is a heavy-duty fitting designed for seamless tube connections in high-pressure systems. Constructed with durable stainless steel, it ensures reliability under extreme conditions. With a tube diameter of 6.0mm and a nominal operating pressure of 630 bar, this coupling is built to withstand rigorous industrial demands. Meeting DIN 2353 standards, it guarantees precision and quality in compression fittings, making it an ideal choice for critical applications.

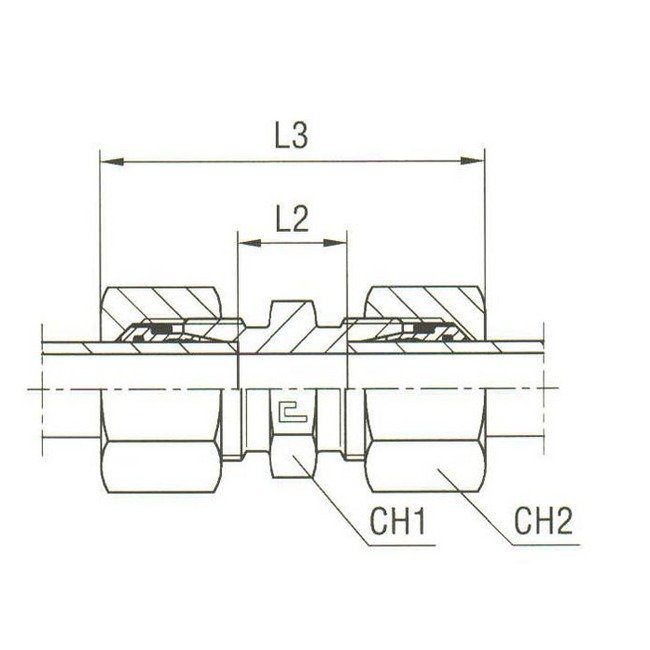

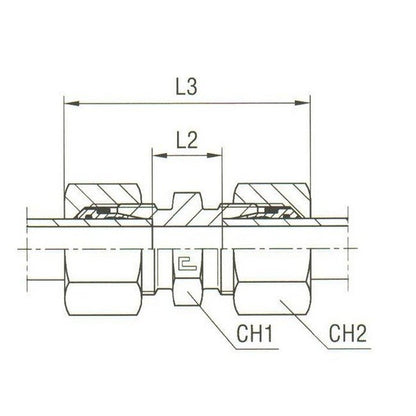

Product Specifications
Specifications Ch1
14 mm
Specifications Ch2
17.0 mm
Specifications L2
16.0 mm
Specifications L3
45.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
