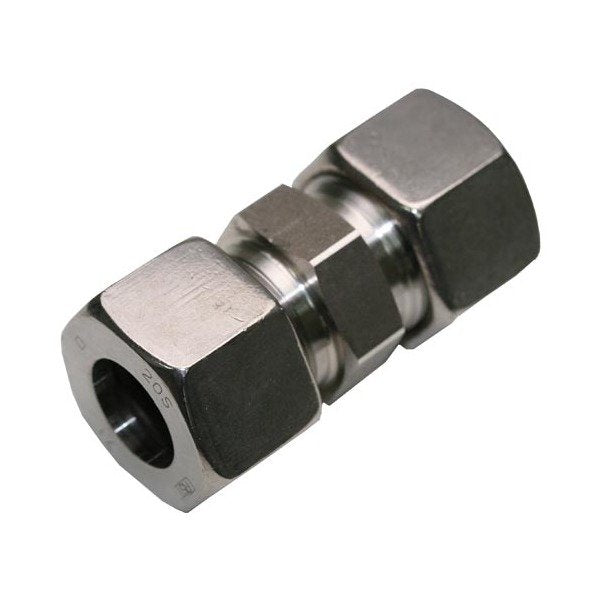

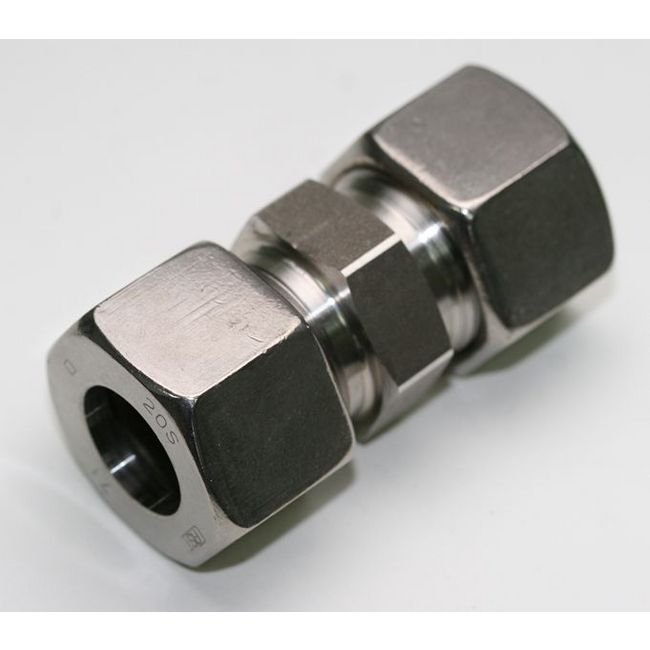

Stainless Steel Straight Coupling with B3 Ring
Stainless Steel Straight Coupling with B3 Ring
SKU:FIT-1ff700
High-quality Stainless Steel Straight Coupling with B3 Ring, ideal for light-duty use. Meets DIN 2353 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Straight Coupling with B3 Ring
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Straight Coupling with B3 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Straight Coupling - Body Only - Equipped with B3 Ring is designed for light-duty applications, featuring a durable stainless steel construction. With a tube diameter of 6.0mm and a nominal operating pressure of 315 bar, this coupling ensures reliable performance. Meeting DIN 2353 standards, it offers precise fit and functionality for various industrial applications.

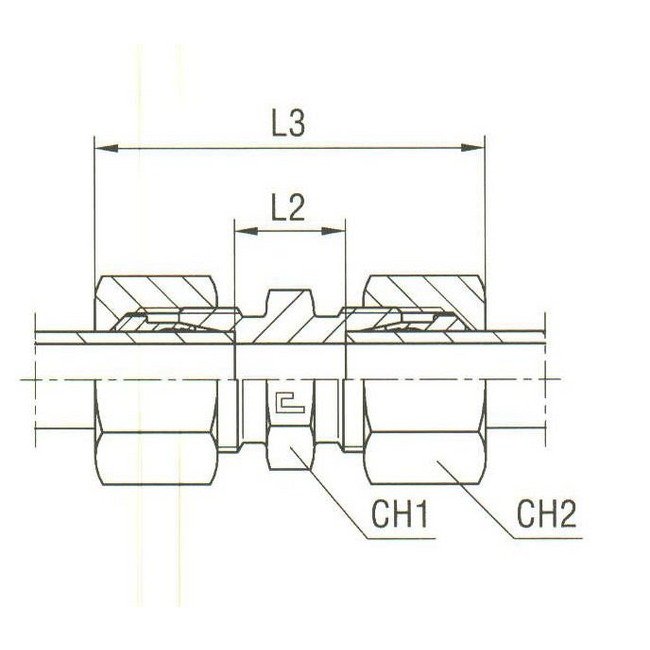

Product Specifications
Specifications Ch1
12 mm
Specifications Ch2
14 mm
Specifications L2
10.0 mm
Specifications L3
39.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
