Stainless Steel Straight Coupling with B4 Ring, DIN 2353 Compression Fitting
Stainless Steel Straight Coupling with B4 Ring, DIN 2353 Compression Fitting
SKU:FIT-c7e3f8
High-quality Stainless Steel Straight Coupling with B4 Ring for reliable leak-free connections in light duty applications. DIN 2353 standard compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Straight Coupling with B4 Ring, DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Straight Coupling with B4 Ring, DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

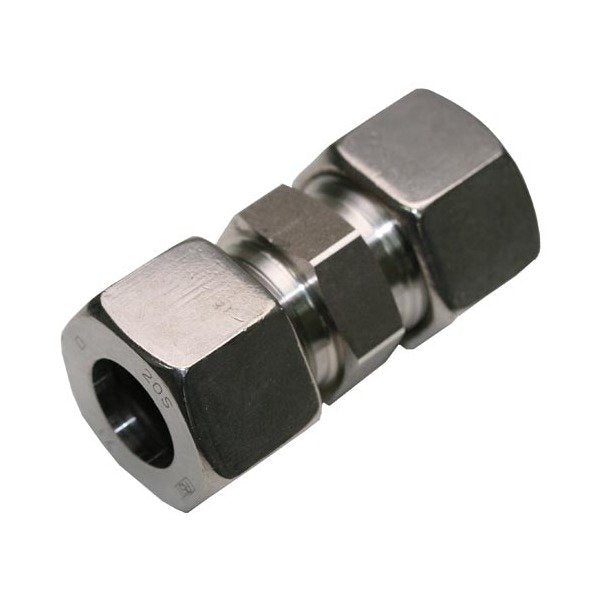

The Stainless Steel Straight Coupling with B4 Ring is designed for reliable and leak-free connections in light duty applications. Constructed from high-quality stainless steel, this fitting ensures durability and corrosion resistance. With a tube diameter of 12.0mm and a nominal operating pressure of 315 bar, it meets stringent DIN 2353 standards, making it ideal for industrial settings requiring precision and performance.

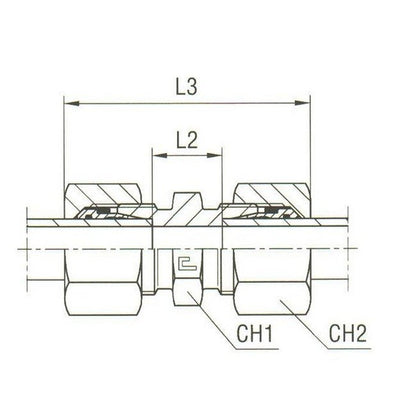

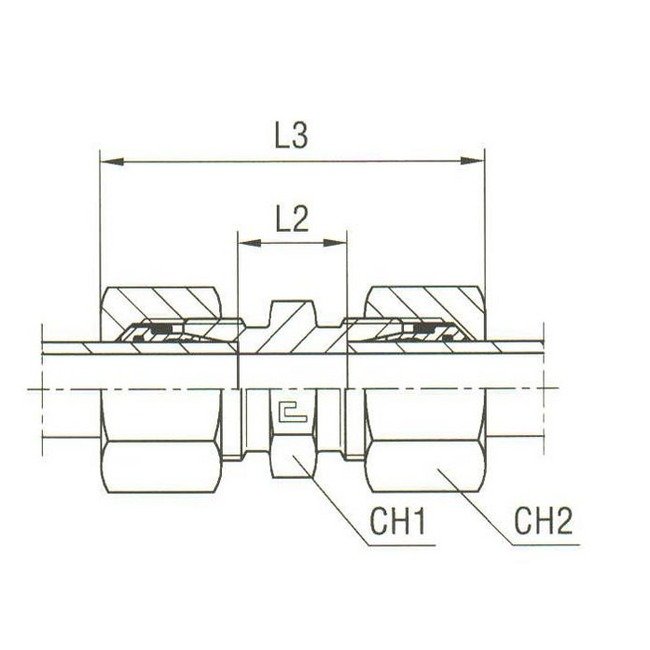

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
22 mm
Specifications L2
14.0 mm
Specifications L3
43 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
