Stainless Steel Straight Coupling with Equipped B3 Ring

Name: Stainless Steel Straight Coupling with Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-26ee43
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-26ee43

Durable stainless steel straight coupling for 35.0mm tubes at 160 bar. DIN 2353 compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

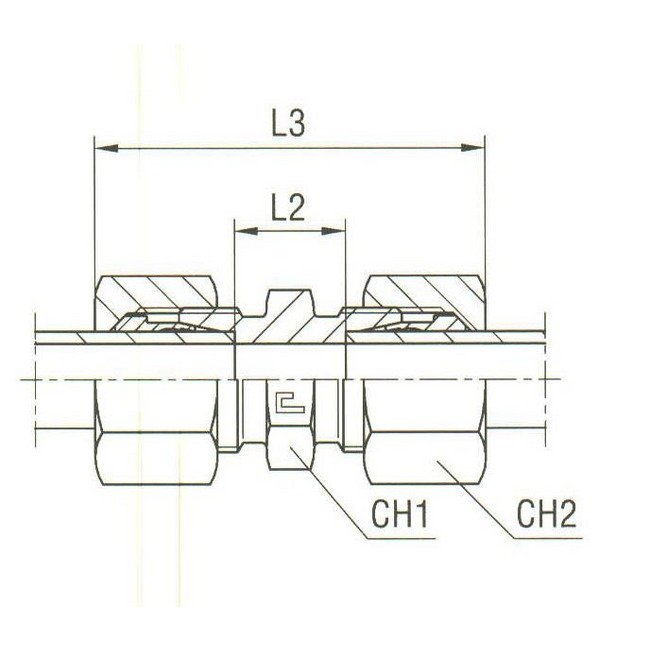

The Stainless Steel Straight Coupling with Equipped B3 Ring is designed for light-duty applications in industrial settings. Made with durable stainless steel, this coupling offers a secure connection for tubes with a diameter of 35.0 mm and a nominal operating pressure of 160 bar. With a compact design featuring dimensions L2: 20.0 mm, L3: 63 mm, CH1: 46 mm, and CH2: 50 mm, this coupling meets DIN 2353 standards, ensuring reliability and performance.

Product Specifications

Specifications Ch1

46 mm

Specifications Ch2

50 mm

Specifications L2

20.0 mm

Specifications L3

63 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

35.0 mm

Stainless Steel Straight Coupling with Equipped B3 Ring
