Stainless Steel Straight Coupling with Equipped B3 Ring
Stainless Steel Straight Coupling with Equipped B3 Ring
SKU:FIT-fe6f87
Heavy-duty Stainless Steel Straight Coupling with 16.0mm tube diameter, 630 bar pressure rating, and DIN 2353 compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Straight Coupling with Equipped B3 Ring
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Straight Coupling with Equipped B3 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

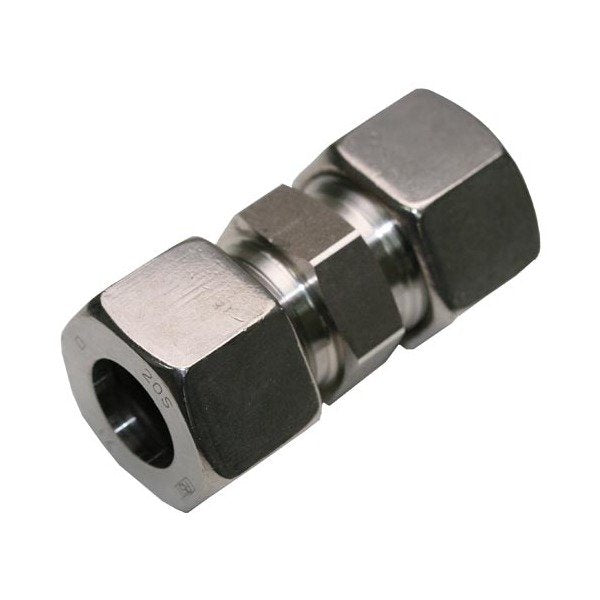

The Stainless Steel Straight Coupling is a heavy-duty fitting designed for reliable performance in high-pressure applications. Made of durable stainless steel, this coupling features a 16.0mm tube diameter, with a nominal operating pressure of 630 bar. Compliant with DIN 2353 standards, it offers precision engineering for secure connections. Ideal for industrial settings requiring robust compression fittings with superior strength and corrosion resistance.

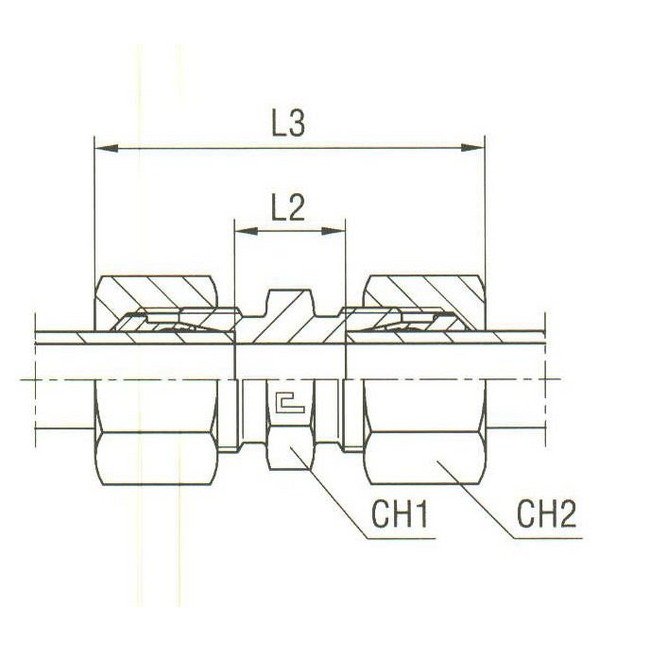

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
30 mm
Specifications L2
21.0 mm
Specifications L3
57 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
16.0 mm
