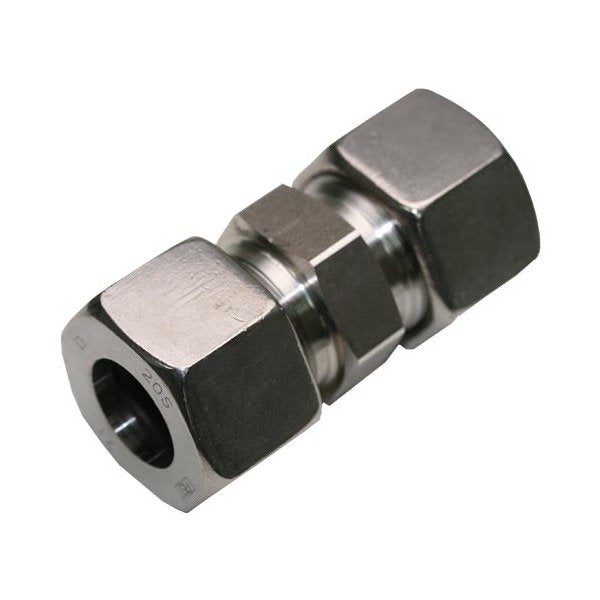

Stainless Steel Straight Coupling with Equipped B3 Ring
Stainless Steel Straight Coupling with Equipped B3 Ring
SKU:FIT-ccaa8c
Heavy-duty Stainless Steel Straight Coupling with Equipped B3 Ring, DIN 2353 compliant, ideal for high-pressure applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Straight Coupling with Equipped B3 Ring
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Straight Coupling with Equipped B3 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

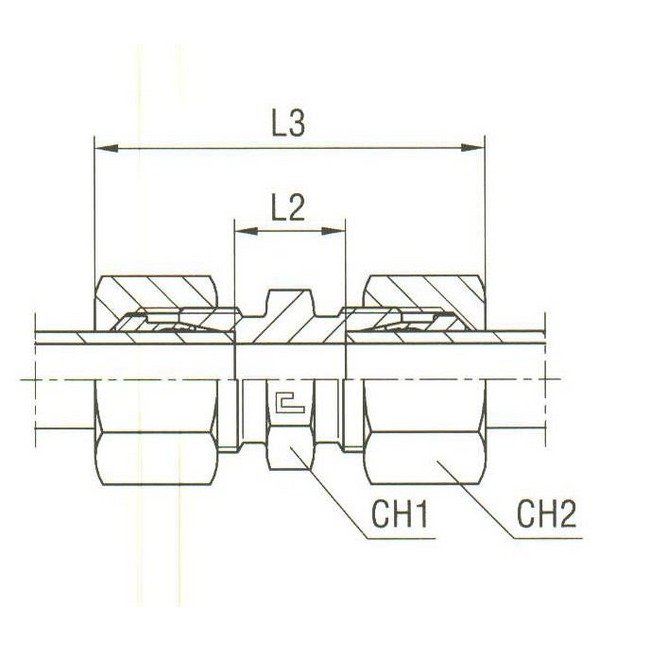

The Stainless Steel Straight Coupling with Equipped B3 Ring is designed for heavy-duty applications with a tube diameter of 14.0 mm and a nominal operating pressure of 630 bar. Meeting DIN 2353 standards, this coupling ensures reliable performance and durability. With precise dimensions of L2: 22 mm, L3: 57 mm, CH1: 24 mm, and CH2: 27 mm, it guarantees a secure connection. Ideal for various industries requiring high-pressure compression fittings.
Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
27 mm
Specifications L2
22 mm
Specifications L3
57 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
14.0 mm
