Stainless Steel Straight Coupling with Equipped B3 Ring

Name: Stainless Steel Straight Coupling with Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-dcd521
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-dcd521

High-quality Stainless Steel Straight Coupling for precise and reliable connections in light duty applications. Compliant with DIN 2353 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

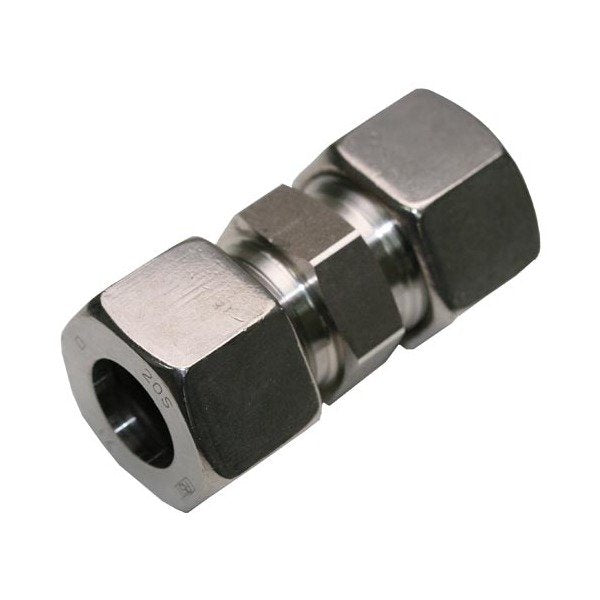

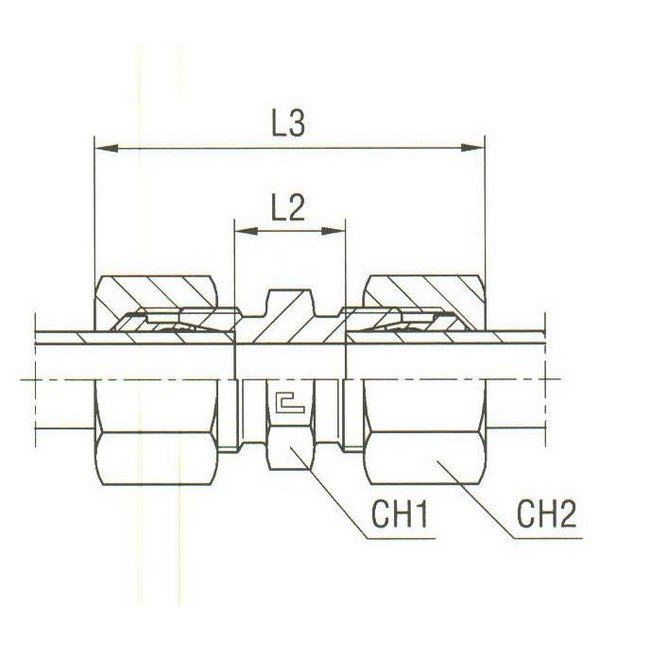

The Stainless Steel Straight Coupling with Equipped B3 Ring is designed for light duty applications, featuring a tube diameter of 10.0mm and a nominal operating pressure of 315 bar. Compliant with DIN 2353 standards, this coupling offers precise fitting connections with dimensions L2 of 13.0mm, L3 of 42mm, CH1 of 17.0mm, and CH2 of 19.0mm. Its durable stainless steel construction ensures reliability and longevity, making it ideal for industrial and institutional use.

Product Specifications

Specifications Ch1

17.0 mm

Specifications Ch2

19.0 mm

Specifications L2

13.0 mm

Specifications L3

42 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm
