Stainless Steel Straight Coupling with Equipped B4 Ring

Stainless Steel Straight Coupling with Equipped B4 Ring

SKU:FIT-a542bf

High-quality Stainless Steel Straight Coupling for heavy-duty applications, DIN 2353 compliant.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Stainless Steel Straight Coupling with Equipped B4 Ring

Stainless Steel Straight Coupling with Equipped B4 Ring

$39.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Straight Coupling with Equipped B4 Ring

Stainless Steel Straight Coupling with Equipped B4 Ring

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

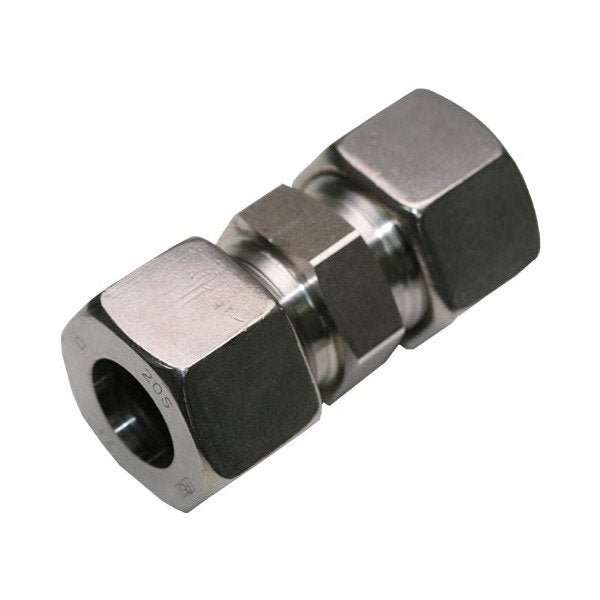

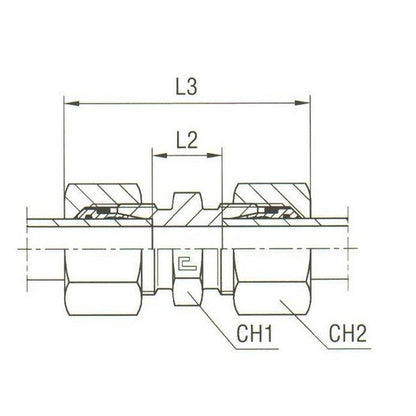

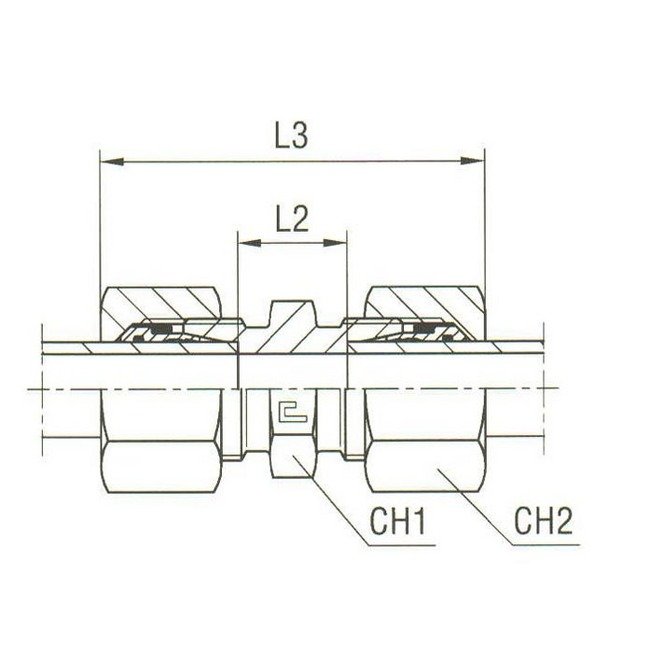

The Stainless Steel Straight Coupling with Equipped B4 Ring is designed for heavy-duty applications, crafted from high-quality stainless steel for durability. With a tube diameter of 10.0 mm and a nominal operating pressure of 630 bar, this coupling excels in demanding environments. Compliant with DIN 2353 standards, it offers precise fittings with dimensions L2: 17.0 mm, L3: 49 mm, CH1: 19.0 mm, and CH2: 22 mm, ensuring reliable performance under pressure.

Product Specifications

Specifications Ch1
19.0 mm
Specifications Ch2
22 mm
Specifications L2
17.0 mm
Specifications L3
49 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
