Stainless Steel Straight Coupling with Equipped B4 Ring

Name: Stainless Steel Straight Coupling with Equipped B4 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-08f1de
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-08f1de

Durable stainless steel straight coupling for heavy-duty industrial applications, meets DIN 2353 standards.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

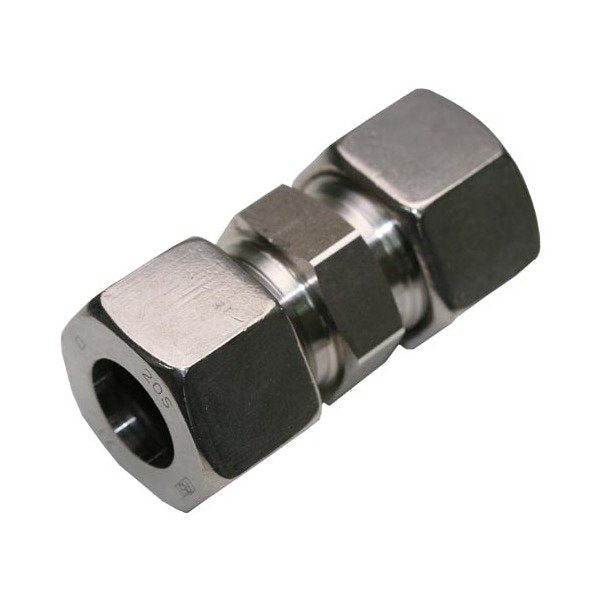

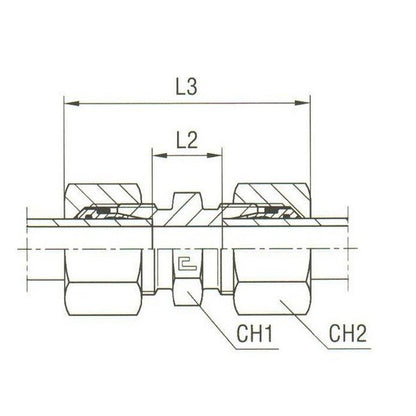

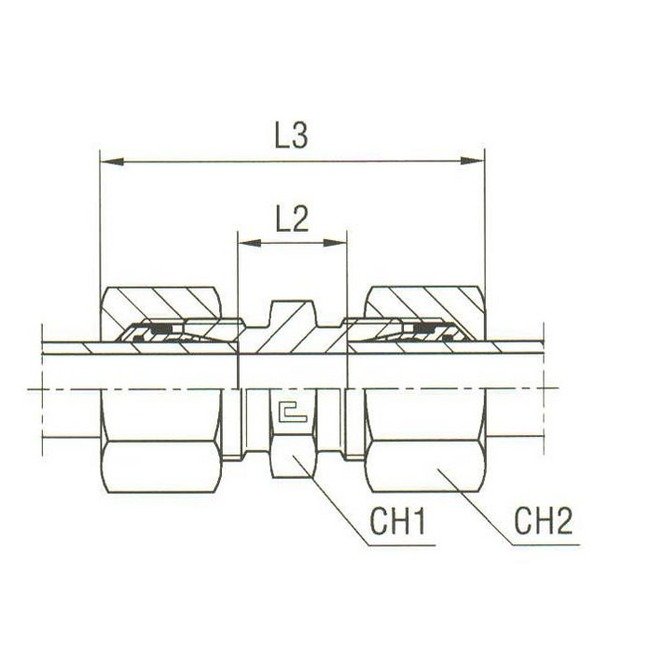

The Stainless Steel Straight Coupling with Equipped B4 Ring is a heavy-duty fitting designed for reliable performance in industrial settings. Made of durable stainless steel, this coupling ensures longevity and resistance to corrosion. With a tube diameter of 20.0mm and a nominal operating pressure of 630 bar, it meets the stringent DIN 2353 standards. The precision engineering of this coupling, with dimensions L2: 23.0mm, L3: 66mm, CH1: 32mm, and CH2: 36mm, makes it ideal for high-pressure hydraulic systems.

Product Specifications

Specifications Ch1

32 mm

Specifications Ch2

36 mm

Specifications L2

23.0 mm

Specifications L3

66 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

20.0 mm

Stainless Steel Straight Coupling with Equipped B4 Ring
