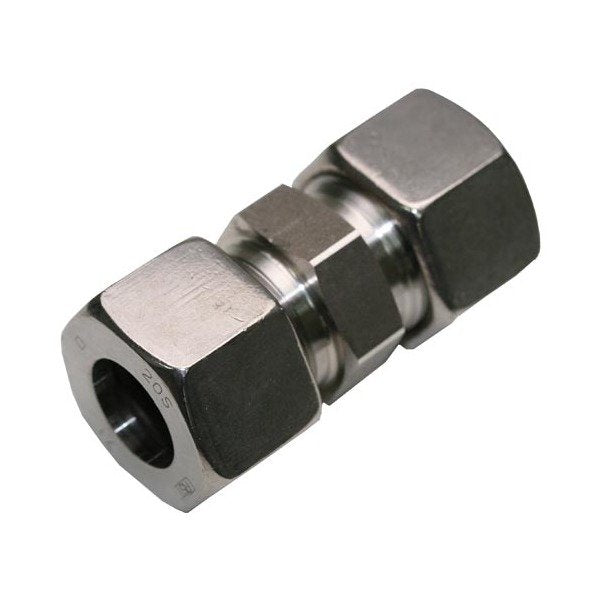

Stainless Steel Straight Coupling with Equipped B4 Ring - DIN 2353 Compression Fitting
Stainless Steel Straight Coupling with Equipped B4 Ring - DIN 2353 Compression Fitting
SKU:FIT-a355d7
Enhance your hydraulic system with precision-engineered Stainless Steel Straight Coupling for secure, leak-free connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Straight Coupling with Equipped B4 Ring - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Straight Coupling with Equipped B4 Ring - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your hydraulic system with this Stainless Steel Straight Coupling. Designed for light-duty applications, this coupling features a tube diameter of 15.0mm and a nominal operating pressure of 315 bar. With precise dimensions meeting DIN 2353 standards, this coupling ensures a secure and leak-free connection for your fluid transfer needs.

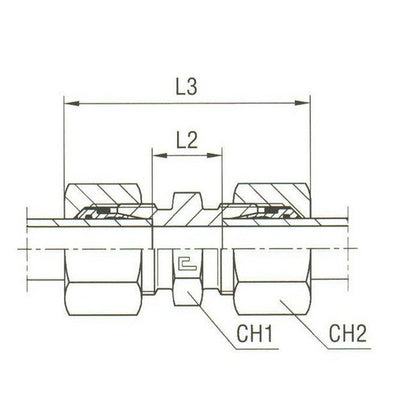

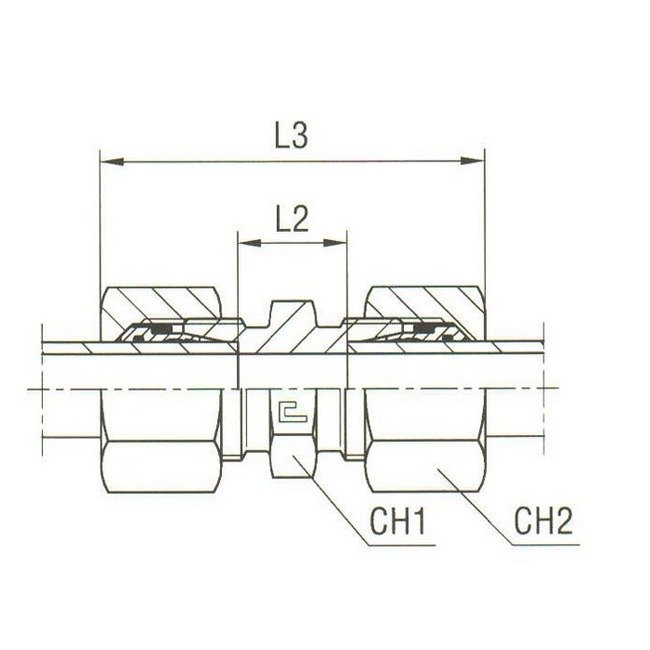

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
27 mm
Specifications L2
16.0 mm
Specifications L3
46 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
15.0 mm
