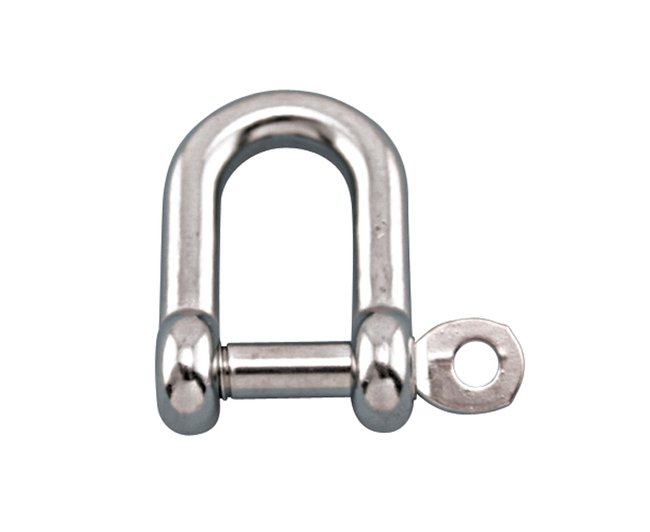

Stainless Steel Straight D Shackle with Captive Pin - Grade 316

Stainless Steel Straight D Shackle with Captive Pin - Grade 316

SKU:STA-186beb

Grade 316 Stainless Steel Straight D Shackle with Captive Pin - Self-locking, corrosion-resistant, ideal for industrial and marine use.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Stainless Steel Straight D Shackle with Captive Pin - Grade 316

Stainless Steel Straight D Shackle with Captive Pin - Grade 316

$24.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Straight D Shackle with Captive Pin - Grade 316

Stainless Steel Straight D Shackle with Captive Pin - Grade 316

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our Stainless Steel Straight D Shackle with Captive Pin offers maximum corrosion resistance and durability. The self-locking captive pin is integral to the shackle body, ensuring it won’t back out or fall when open. Precision-cast from grade 316 stainless steel, this shackle is ideal for industrial and marine applications. Available in various sizes with a Working Load Limit of 1500 lb, it meets stringent standards for reliability and safety in heavy-duty settings.

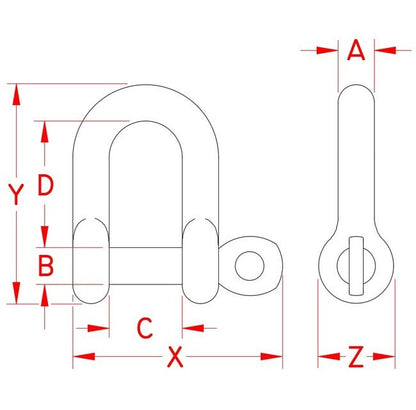

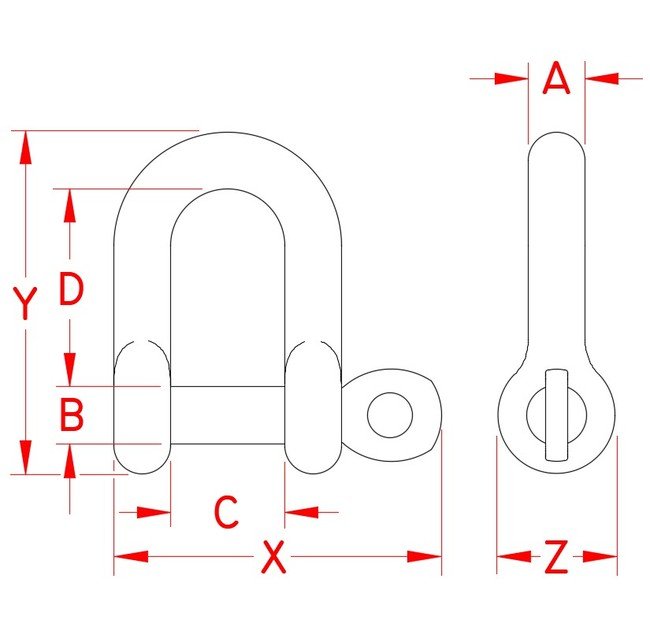

Product Specifications

Specifications Dimension A
1/2 in
Specifications Dimension B
0.47 in
Specifications Dimension C
0.95 in
Specifications Dimension D
1.65 in
Specifications Dimension X
2.06 in
Specifications Dimension Y
2.77 in
Specifications Dimension Z
0.92 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.408 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
