Stainless Steel Straight D Shackle with No Snag Pin - 316 Grade

Stainless Steel Straight D Shackle with No Snag Pin - 316 Grade

SKU:STA-da7a62

Durable Stainless Steel Straight D Shackle with No Snag Pin for marine & industrial use. Grade 316, sizes 1/4" to 1", WLL 1500 lb.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Stainless Steel Straight D Shackle with No Snag Pin - 316 Grade

Stainless Steel Straight D Shackle with No Snag Pin - 316 Grade

$29.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Straight D Shackle with No Snag Pin - 316 Grade

Stainless Steel Straight D Shackle with No Snag Pin - 316 Grade

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

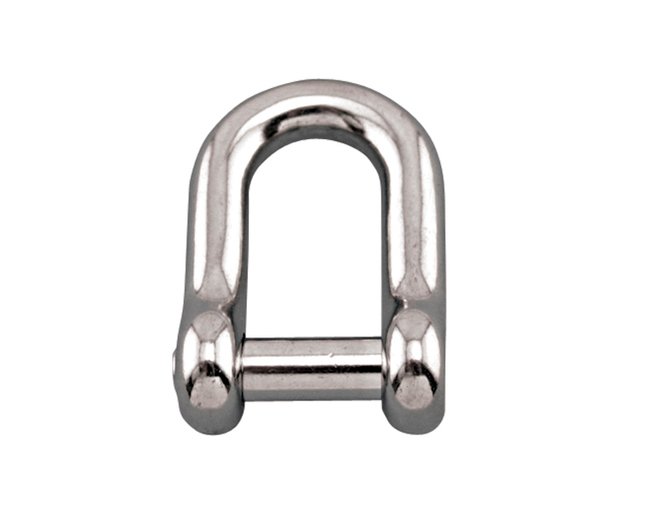

The Stainless Steel Straight D Shackle with No Snag Pin is a robust and reliable fastening solution designed for marine and industrial applications. Crafted from grade 316 stainless steel, this shackle offers exceptional corrosion resistance and durability. The no snag pin, flush with the shackle body, ensures smooth operation and secure connections. Available in various sizes from 1/4" to 1", this precision-cast shackle has a working load limit of 1500 lb, making it ideal for heavy-duty tasks. Trust in the quality of Suncor's fabrication for a dependable and long-lasting straight D shackle.

Product Specifications

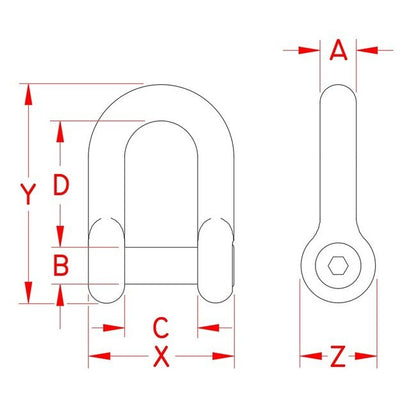

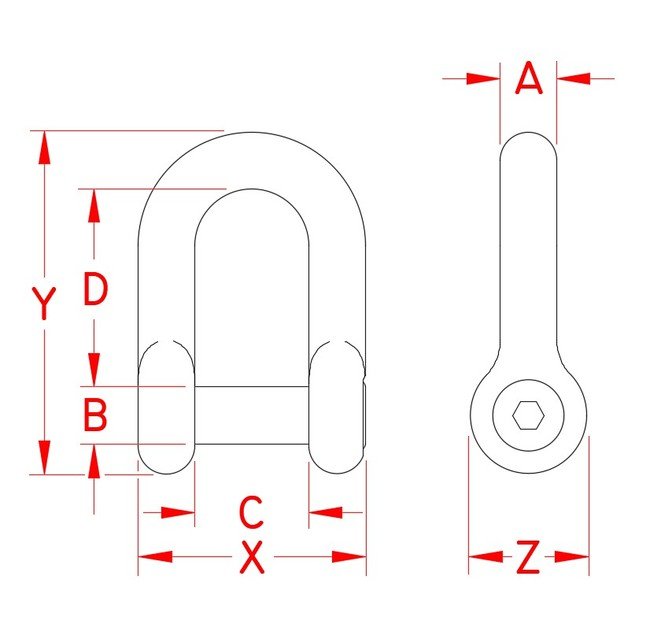

Specifications Dimension A
15/32 in
Specifications Dimension B
0.47 in
Specifications Dimension C
0.93 in
Specifications Dimension D
1.64 in
Specifications Dimension X
1.94 in
Specifications Dimension Y
2.79 in
Specifications Dimension Z
0.95 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.4 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
