Stainless Steel Studs MS21259 - Thread Specification Available

Stainless Steel Studs MS21259 - Thread Specification Available

SKU:MIL-7ec427

High-quality Stainless Steel Studs MS21259 for military applications. RH or LH thread options available. Robust and precise construction.

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

Stainless Steel Studs MS21259 - Thread Specification Available

Stainless Steel Studs MS21259 - Thread Specification Available

$12.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Studs MS21259 - Thread Specification Available

Stainless Steel Studs MS21259 - Thread Specification Available

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

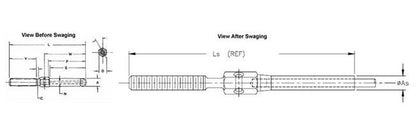

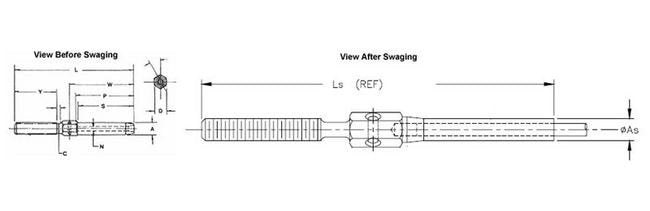

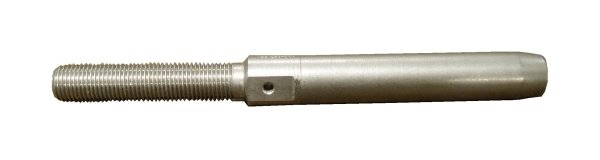

The Stainless Steel Studs MS21259 are precision-engineered to fit wire rope diameter of 1/2 inches. With a thread size of 5/8-18, these studs have precise dimensions to ensure secure fastening. The studs are designed with dimensional accuracy including A Diameter of .844 inches, C Diameter of .592 inches, and L Length of 8.187 inches. Each piece weighs approximately .772 lbs and guarantees durability for military applications. Specify RH or LH thread as needed.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications As Diam
.750
Specifications A Diam
.844
Specifications C Diam In
.592
Specifications D In
.875
Specifications Lbs Per Piece
.772
Specifications Ls Ref
8.75
Specifications L 015 000 In
8.187
Specifications N Diam
.531
Specifications P In
4.698
Specifications S 062 000 In
4.625
Specifications Thread Size B
5/8-18
Specifications To Fit Wire Rope Dia In
1/2
Specifications W 016 In
5.093
Specifications Y 063 000 In
2.500
CAGE
0T9L4
NAICS
332510
PSC
4030
