Stainless Steel Super Air Wipe Kit - 4 Inch Diameter
Stainless Steel Super Air Wipe Kit - 4 Inch Diameter
SKU:SUP-37d054
Enhance efficiency with the Stainless Steel Super Air Wipe Kit. Ideal for industrial wiping, dust removal, and cooling applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Stainless Steel Super Air Wipe Kit - 4 Inch Diameter
$349.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Super Air Wipe Kit - 4 Inch Diameter
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

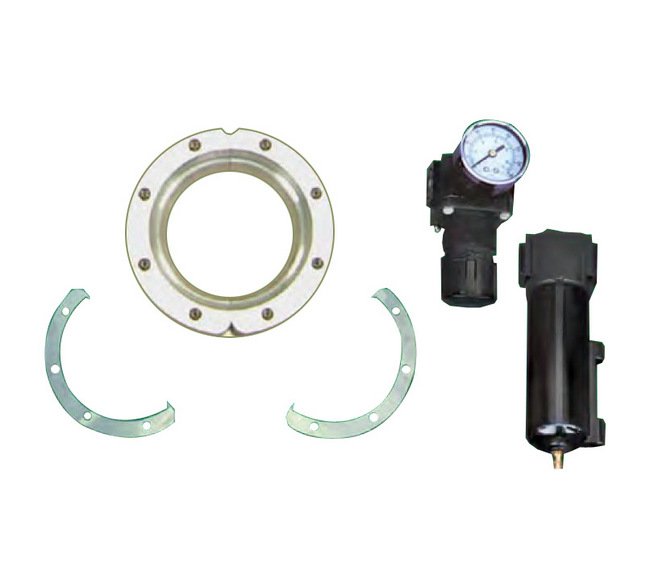

The Stainless Steel Super Air Wipe Kit (Model 2454SS) is a high-performance solution designed for a wide range of industrial applications. This kit includes a Super Air Wipe, shim set, filter separator, and pressure regulator, providing efficient air wiping, dust removal, paint gun cleaning, and more. With durable stainless steel construction, the Super Air Wipe Kit offers exceptional resistance to corrosion and high temperatures up to 800°F. It meets OSHA safety requirements, ensures uniform 360° airflow, and allows for precise control of airflow, force, and consumption. Ideal for industrial tasks requiring reliable, non-contact surface wiping in a compact and easy-to-install design.
Product Specifications
Specifications Advantages
Aluminum Models for temperatures up to 400ºF (204ºC) Stainless Steel Models for temperatures Up to 800ºF (427ºC) | Lightweight, Low Profile | Low Air Consumption | Meets OSHA Maximum Dead End Pressure and Noise Requirements | No Electricity, no Moving Parts | Non-contact - No Wiper Blade | Quiet | Split Design - Compact, Rugged, Easy to Install | Stainless Steel Hardware Resists Corrosion | Stainless Steel Hose Supplied on Sizes Up to 4 inch (102 mm) | Tapped Holes for Mounting | Uniform 360° Airflow | Variable Force and Flow
Specifications Air Wipe Type
Super
Specifications Applications
Blow excess water from automotive door gaskets | Blowoff Dust and Contaminants | Clean Paint Gun Tips | Clean Strips and Ribbon | Cool Hot Extruded Shapes | Dry Extruded Profiles, Rod and Medical Tubing | Dry Screen Printed or Ink Jetted Surfaces | Dry Tube, Hose, Wire, Fiber Optics | Drying After Washing, Cleaning, Plating or Coating | Eliminate Solution Carryover - No Cross Contamination | Minimize Solution Loss Due to Drag-Out | Remove Excess Coatings, Water and Oil | Uniformly Wipe Surfaces
Specifications Features
Compressed Air Inlets : The Super Air Wipe has compressed air inlets on each half. Stainless steel wire braided hose is supplied with sizes up to 4" (102mm) that couples the air supply of one half to the other. Sizes 9" (229mm) and larger have two inlets on each half that must be supplied with compressed air to maintain uniform airflow. | Filtration : The use of clean air is essential. Kits include an automatic drain filter separator with a 5 micron filter element that is sized properly for flow. | Materials of Construction : The Super Air Wipe is constructed of aluminum or stainless steel. All models use stainless steel shims and screws. Stainless steel wire braided hose is included with sizes up to 4" (102mm). | Mounting : The Super Air Wipe can be supported by the compressed air supply pipe. Tapped holes (1/4-20) on the downstream side of the Super Air Wipe can also be used for mounting. | Regulation : A pressure regulator on the compressed air supply provides infinite control of flow, force and air consumption. Kits include a pressure regulator that is sized properly for flow. | Shim Sets : The Super Air Wipe has a 0.002" (0.05 mm) gap setting. The compressed air exhausts through a gap which is set with a stainless steel shim positioned between the cap and body of the Super Air Wipe. Force and flow through the Super Air Wipe may be easily increased by adding shims to open the gap. Kits include a shim set. Shim sets include (2) .002" (0.05mm) thick stainless steel shims. | Temperature : Aluminum Super Air Wipes are rated for temperatures up to 400°F (204°C). Stainless steel models are rated for temperatures to 800°F (427°C).
Specifications Included Accessories
Filter Separator | Pressure Regulator (with Coupler) | Shim Set | Super Air Wipe
Specifications Inside Diameter
4 in | 102 mm
