Stainless Steel Swivel Bolt Band Clamp
Stainless Steel Swivel Bolt Band Clamp
SKU:ACC-2499fd
Secure non-cylindrical objects with precision using our Stainless Steel Swivel Bolt Band Clamp. Ideal for mounting plastic fuel tanks. Buy now!
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Swivel Bolt Band Clamp
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Swivel Bolt Band Clamp
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

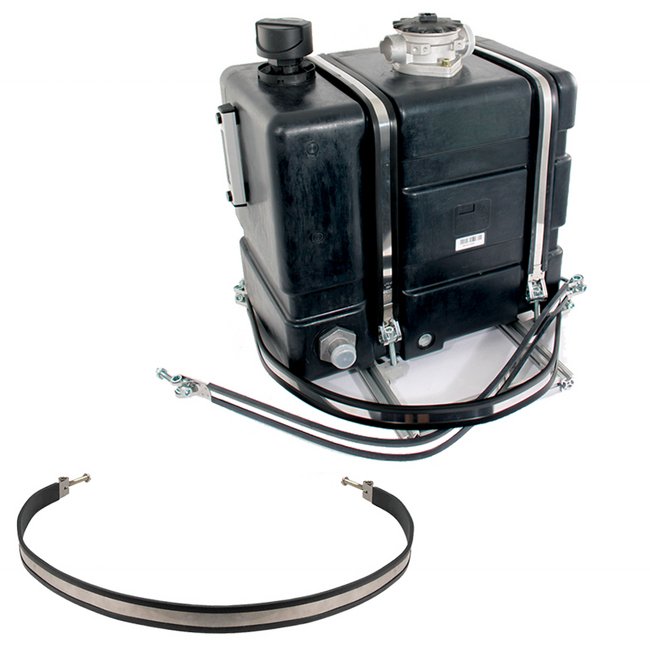

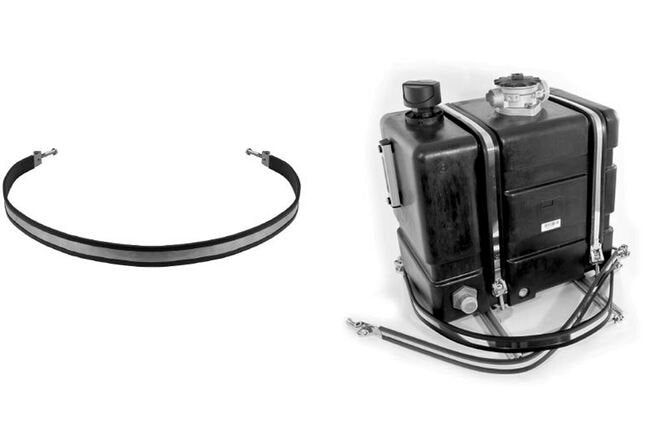

The Stainless Steel Swivel Bolt Band Clamp by HYDAC is a reliable mounting solution designed for securing non-cylindrical objects like plastic fuel tanks. Constructed with high-quality stainless steel clamping bands, this clamp features a swivel bolt locking mechanism for easy and secure fastening. The EPDM profile material ensures durability while the carbon steel hardware, including metric hex head bolts, offers robust support. With dimensions of 1mm thickness, 25mm width, and a diameter range of 7.6 - 8.3 inches, this clamp provides a versatile and effective solution for OEMs and industrial applications.
Product Specifications

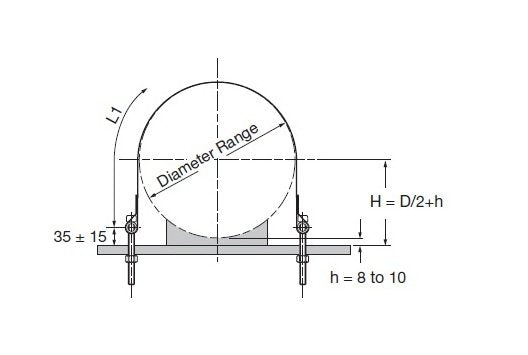

Dimensions Diameter Max
8.3 in | 210 mm
Dimensions Diameter Min
7.6 in | 194 mm
Dimensions Length L1
19 in | 483 mm
Dimensions Thickness
1 mm
Dimensions Width
25 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Hardware
Metric Hex Head Bolts
Specifications Locking Type
Swivel Bolt
Specifications Metal Components Materials
Carbon Steel
Specifications Model Code Description
HRGBLPU 25 A1 160 ST
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
160
