Stainless Steel Swivel Bolt Band Clamp
Stainless Steel Swivel Bolt Band Clamp
SKU:ACC-6cbba3
Premium stainless steel band clamp for secure and adjustable mounting of non-cylindrical objects. Durable construction with swivel bolt locking.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Swivel Bolt Band Clamp
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Swivel Bolt Band Clamp
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

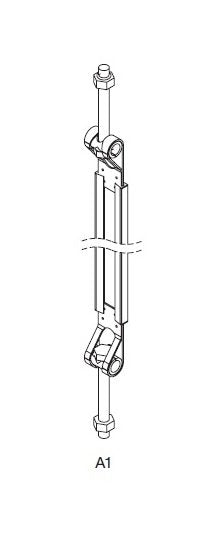

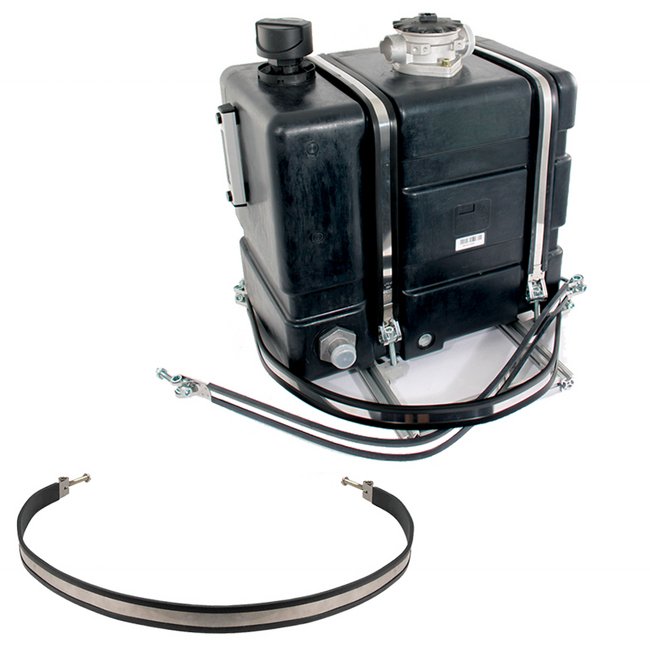

The Stainless Steel Swivel Bolt Band Clamp by HYDAC is a premium solution designed for OEMs seeking reliable mounting options for non-cylindrical objects like plastic fuel tanks. Constructed with durable stainless steel clamping material and featuring a swivel bolt locking mechanism, this clamp ensures secure and adjustable fastening. The EPDM profile material provides excellent protection, while the carbon steel metal components and metric hex head bolts offer strength and stability. With a sleek design and precise dimensions, including a 1mm thickness and a 26.7-inch length, this band clamp is a dependable choice for a variety of mounting applications.
Product Specifications

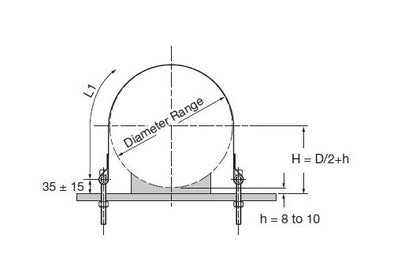

Dimensions Diameter Max
11.3 in | 287 mm
Dimensions Diameter Min
10.6 in | 269 mm
Dimensions Length L1
26.7 in | 679 mm
Dimensions Thickness
1 mm
Dimensions Width
25 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Hardware
Metric Hex Head Bolts
Specifications Locking Type
Swivel Bolt
Specifications Metal Components Materials
Carbon Steel
Specifications Model Code Description
HRGBLPU 25 A1 223 ST
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
223
