Stainless Steel Swivel Bolt Band Clamp
Stainless Steel Swivel Bolt Band Clamp
SKU:ACC-cc6955
HYDAC Stainless Steel Swivel Bolt Band Clamp for secure non-cylindrical object mounting. Type Number: 191, Stainless Steel Clamping Band, Swivel Bolt Locking, EPDM Profile, Carbon Steel Components.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Swivel Bolt Band Clamp
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Swivel Bolt Band Clamp
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Secure non-cylindrical objects like plastic fuel tanks efficiently with the Stainless Steel Swivel Bolt Band Clamp from HYDAC. This clamp features a Type Number of 191, a robust Stainless Steel Clamping Band Material, and a secure Locking Type with Swivel Bolt mechanism. With dimensions of 1.5mm Thickness, 22.6in Length, and 30mm Width, it can accommodate objects with diameters ranging from 9in to 9.9in. The EPDM Profile Material and Carbon Steel Metal Components ensure durability and reliability in various mounting applications.
Product Specifications
Dimensions Diameter Max
9.9 in | 252 mm
Dimensions Diameter Min
9 in | 229 mm
Dimensions Length L1
22.6 in | 575 mm
Dimensions Thickness
1.5 mm
Dimensions Width
30 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Division
ACCESSORIES
Specifications Hardware
Metric Socket Head Bolts
Specifications Locking Type
Swivel Bolt
Specifications Metal Components Materials
Carbon Steel
Specifications Model Code Description

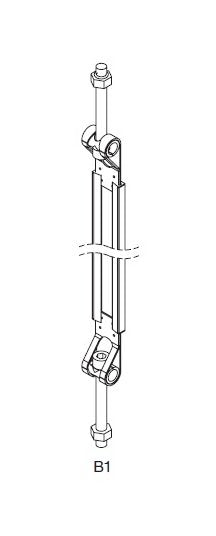

HRSGBLPU 30 B1 191 ST
Specifications Product
CLAMPS
Specifications Product Group Family
MOUNTING COMPONENTS
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
191
