Stainless Steel Swivel Bolt Band Clamp for Mounting Non-Cylindrical Objects

Name: Stainless Steel Swivel Bolt Band Clamp for Mounting Non-Cylindrical Objects
Brand: HYDAC Technology Corporation
SKU: ACC-22d47c
Price: 49.99 USD
Availability: OutOfStock

SKU:ACC-22d47c

Secure non-cylindrical objects with precision using this Stainless Steel Swivel Bolt Band Clamp by HYDAC. Crafted for durability and stability in industrial applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

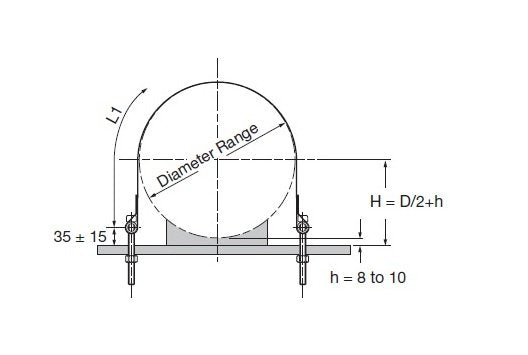

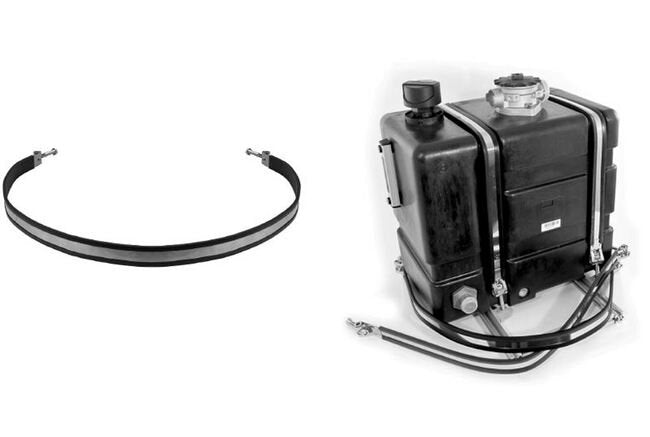

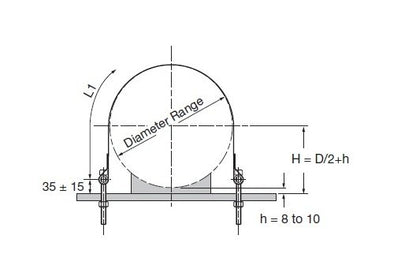

Enhance mounting solutions with this Stainless Steel Swivel Bolt Band Clamp designed by HYDAC for securing non-cylindrical objects like plastic fuel tanks. The band strap features a precision-engineered Type 204 profile, crafted from durable stainless steel and EPDM materials, with a locking mechanism of swivel bolts for enhanced stability. Suitable for various industrial applications, this clamp offers a secure grip with dimensions of 1.5mm thickness, 24.2-inch length, and adjustable diameter between 9.6 to 10.6 inches.

Product Specifications

Dimensions Diameter Max

10.6 in | 269 mm

Dimensions Diameter Min

9.6 in | 245 mm

Dimensions Length L1

24.2 in | 615 mm

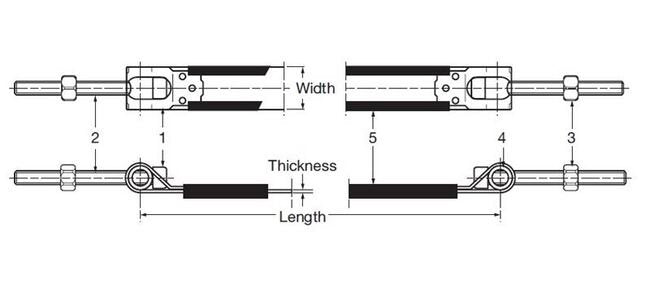

Dimensions Thickness

1.5 mm

Dimensions Width

30 mm

Specifications Bun

Specifications Clamping Band Material

Stainless Steel

Specifications Hardware

Metric Socket Head Bolts

Specifications Locking Type

Swivel Bolt

Specifications Metal Components Materials

Carbon Steel

Specifications Model Code Description

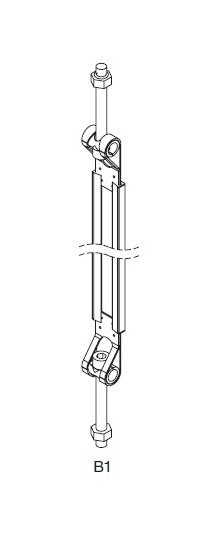

HRSGBLPU 30 B1 204 ST

Specifications Profile Material

EPDM

Specifications Type

Swivel Bolt Band Clamp

Specifications Type Number

204
