Stainless Steel Swivel Bolt Band Clamps - 30mm Width
Stainless Steel Swivel Bolt Band Clamps - 30mm Width
SKU:ACC-11c00e
Secure non-cylindrical objects effortlessly with stainless steel band straps featuring swivel bolt locking and EPDM profile material. Suitable for OEM mounting solutions.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Swivel Bolt Band Clamps - 30mm Width
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Swivel Bolt Band Clamps - 30mm Width
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

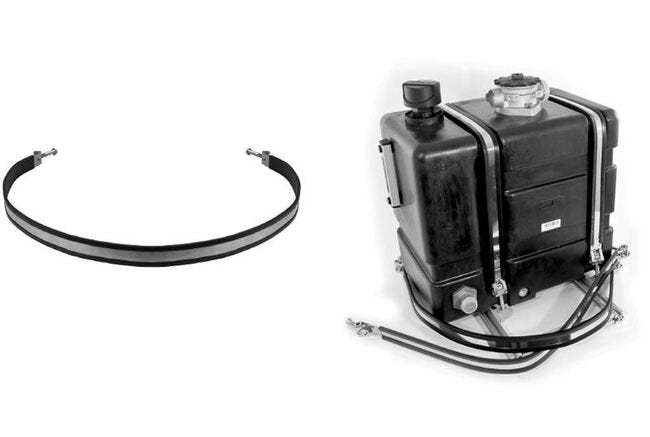

Ideal for OEMs needing secure mounting solutions, these stainless steel band straps with swivel bolt locking are designed to fasten non-cylindrical objects like plastic fuel tanks. The EPDM profile material ensures durability, while the carbon steel hardware and metric socket head bolts provide robust support. With a clamping band material of stainless steel, these band clamps have a thickness of 1.5mm and accommodate min-max diameters of 7.8in to 8.7in. Meet your mounting needs reliably and securely with these precision-engineered band straps.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

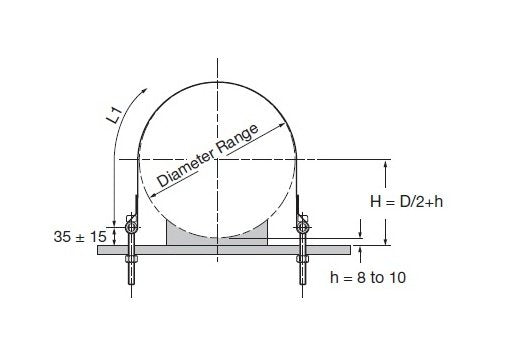

Dimensions Diameter Max
8.7 in | 221 mm
Dimensions Diameter Min
7.8 in | 198 mm

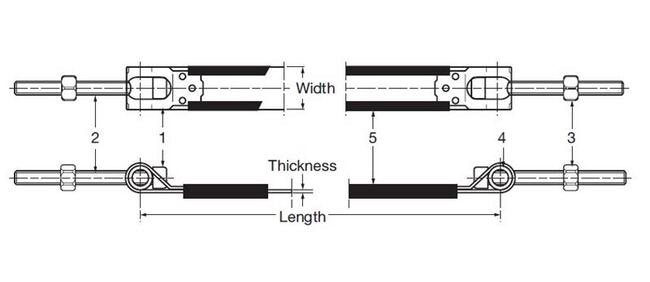

Dimensions Length L1
19.4 in | 494 mm
Dimensions Thickness
1.5 mm
Dimensions Width
30 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Hardware
Metric Socket Head Bolts
Specifications Locking Type
Swivel Bolt
Specifications Metal Components Materials
Carbon Steel
Specifications Model Code Description
HRSGBLPU 30 B1 165 ST
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
165
