Stainless Steel T-Handle Mini Needle Valve, Female x Female 1/4"
Stainless Steel T-Handle Mini Needle Valve, Female x Female 1/4"
SKU:MIN-8827f1
Precision Stainless Steel T-Handle Mini Needle Valve for industrial applications, Female x Female 1/4", 6000 psi
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel T-Handle Mini Needle Valve, Female x Female 1/4"
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel T-Handle Mini Needle Valve, Female x Female 1/4"
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Female x Female Stainless Steel T-Handle Mini Needle Valve is a precision-engineered solution ideal for industrial applications requiring precise flow control. Constructed from high-grade 316 Stainless Steel, this valve ensures durability and reliable performance in high-pressure environments up to 6000 psi. With double PTFE stem packing and double Fluorocarbon (FKM) O-ring back up, it guarantees leak-free operation. The hard seat design enhances its temperature resistance, making it suitable for diverse industrial processes. This valve's dimensions and materials adhere to stringent quality standards, ensuring it meets the exacting requirements of institutional and government buyers.
Product Specifications
Technical Specs Body Material
316 Stainless Steel
Technical Specs Bonnet Material
316 Stainless Steel

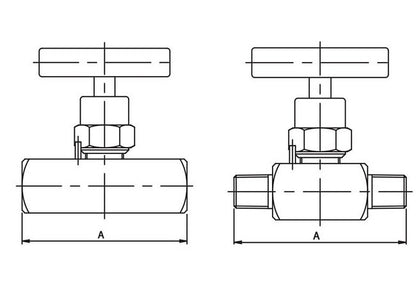

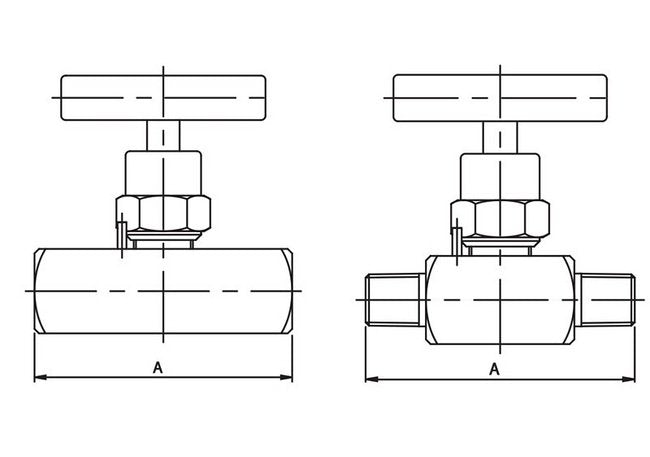

Technical Specs Dimension A
2.28 in
Technical Specs Dimension B
0.87 in
Technical Specs Dimension C
2.28 in
Technical Specs Dimension D
1.81 in
Technical Specs Dimension E
0.75 in
Technical Specs Handle Material
304 Stainless Steel
Technical Specs Material
Stainless Steel
Technical Specs Pressure Rating
6000 psi
Technical Specs Size
1/4 x 1/4 in
Technical Specs Stem Material
316 Stainless Steel
Technical Specs Thread Type
Female x Female
