Stainless Steel T-Handle Mini Needle Valve - Male x Female, 1/4 x 1/4 in
Stainless Steel T-Handle Mini Needle Valve - Male x Female, 1/4 x 1/4 in
SKU:MIN-ef03ed
High-quality Stainless Steel T-Handle Mini Needle Valve for precision flow control in industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel T-Handle Mini Needle Valve - Male x Female, 1/4 x 1/4 in
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel T-Handle Mini Needle Valve - Male x Female, 1/4 x 1/4 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

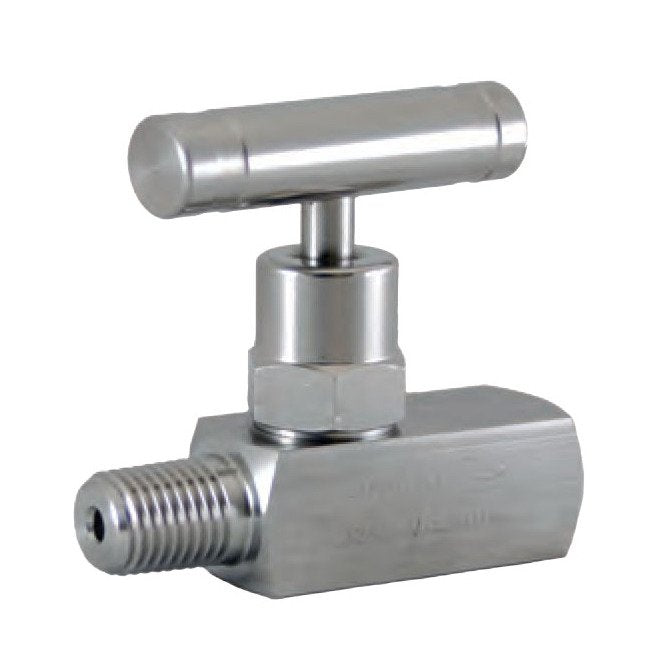

The Stainless Steel T-Handle Mini Needle Valve features double PTFE stem packing and double Fluorocarbon (FKM) O-ring backup for secure sealing. Its hard seat design ensures high-temperature resistance, suitable for demanding applications. Crafted from high-grade 316 Stainless Steel components, this valve offers exceptional durability and longevity. With a pressure rating of 6000 psi, precise flow control is guaranteed, making it ideal for industrial settings and critical systems.
Product Specifications
Technical Specs Body Material
316 Stainless Steel
Technical Specs Bonnet Material
316 Stainless Steel

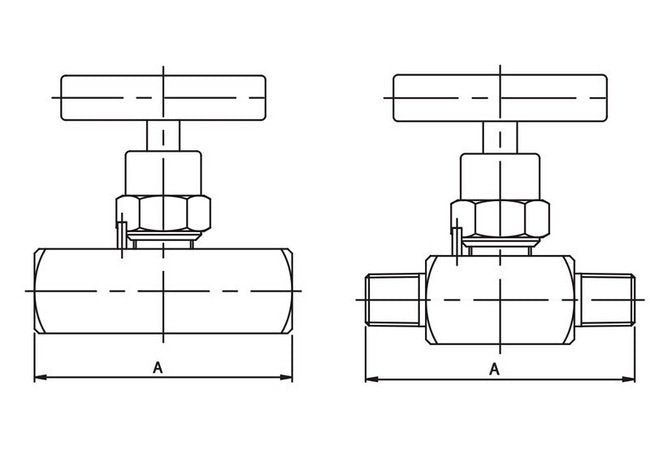

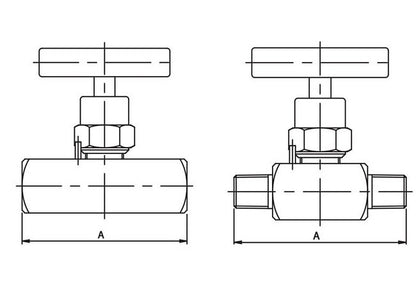

Technical Specs Dimension A
2.28 in
Technical Specs Dimension B
0.87 in
Technical Specs Dimension C
2.28 in
Technical Specs Dimension D
1.81 in
Technical Specs Dimension E
0.75 in
Technical Specs Handle Material
304 Stainless Steel
Technical Specs Material
Stainless Steel
Technical Specs Pressure Rating
6000 psi
Technical Specs Size
1/4 x 1/4 in
Technical Specs Stem Material
316 Stainless Steel
Technical Specs Thread Type
Male x Female
