Stainless Steel T-Handle Mini Needle Valve - Male x Male, 1/4 in, 6000 psi

Name: Stainless Steel T-Handle Mini Needle Valve - Male x Male, 1/4 in, 6000 psi
Brand: Superlok-Mako Products LLC
SKU: MIN-ad59dc
Price: 45.99 USD
Availability: OutOfStock

SKU:MIN-ad59dc

High-performance Stainless Steel T-Handle Mini Needle Valve for precision flow control.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

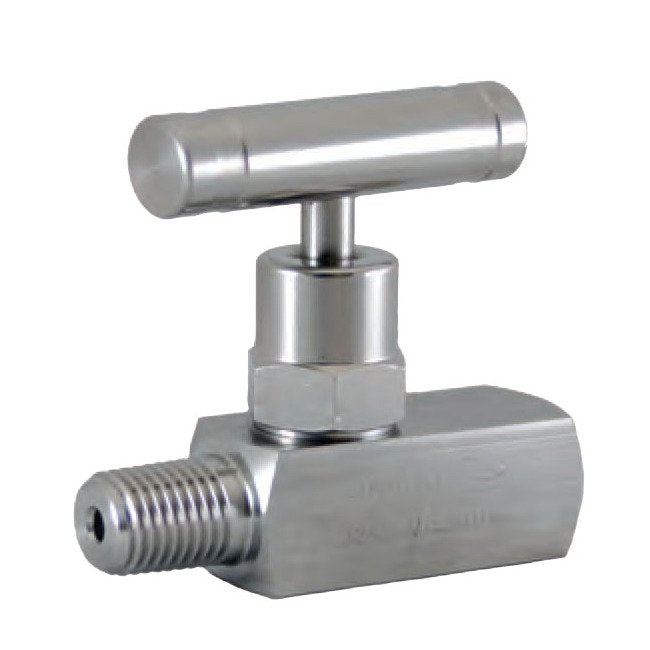

The Stainless Steel T-Handle Mini Needle Valve features a double PTFE stem packing and double Fluorocarbon (FKM) O-ring back up for superior performance. With a hard seat designed for high-temperature applications, this valve ensures reliability and durability. Constructed from 316 Stainless Steel, it meets stringent industry standards for quality and longevity.

Product Specifications

Technical Specs Body Material

316 Stainless Steel

Technical Specs Bonnet Material

316 Stainless Steel

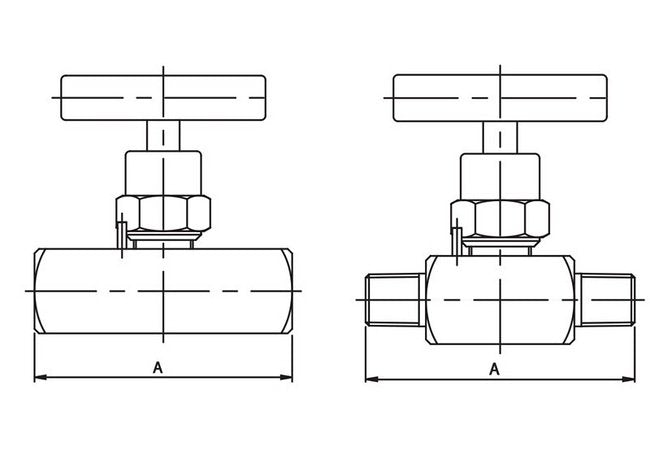

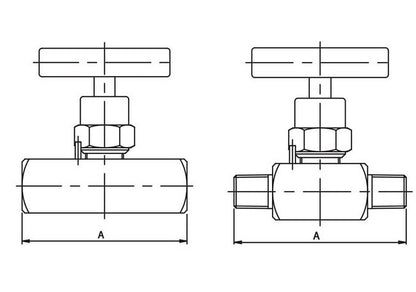

Technical Specs Dimension A

2.28 in

Technical Specs Dimension B

0.87 in

Technical Specs Dimension C

2.28 in

Technical Specs Dimension D

1.81 in

Technical Specs Dimension E

0.75 in

Technical Specs Handle Material

304 Stainless Steel

Technical Specs Material

Stainless Steel

Technical Specs Pressure Rating

6000 psi

Technical Specs Size

1/4 x 1/4 in

Technical Specs Stem Material

316 Stainless Steel

Technical Specs Thread Type

Male x Male
